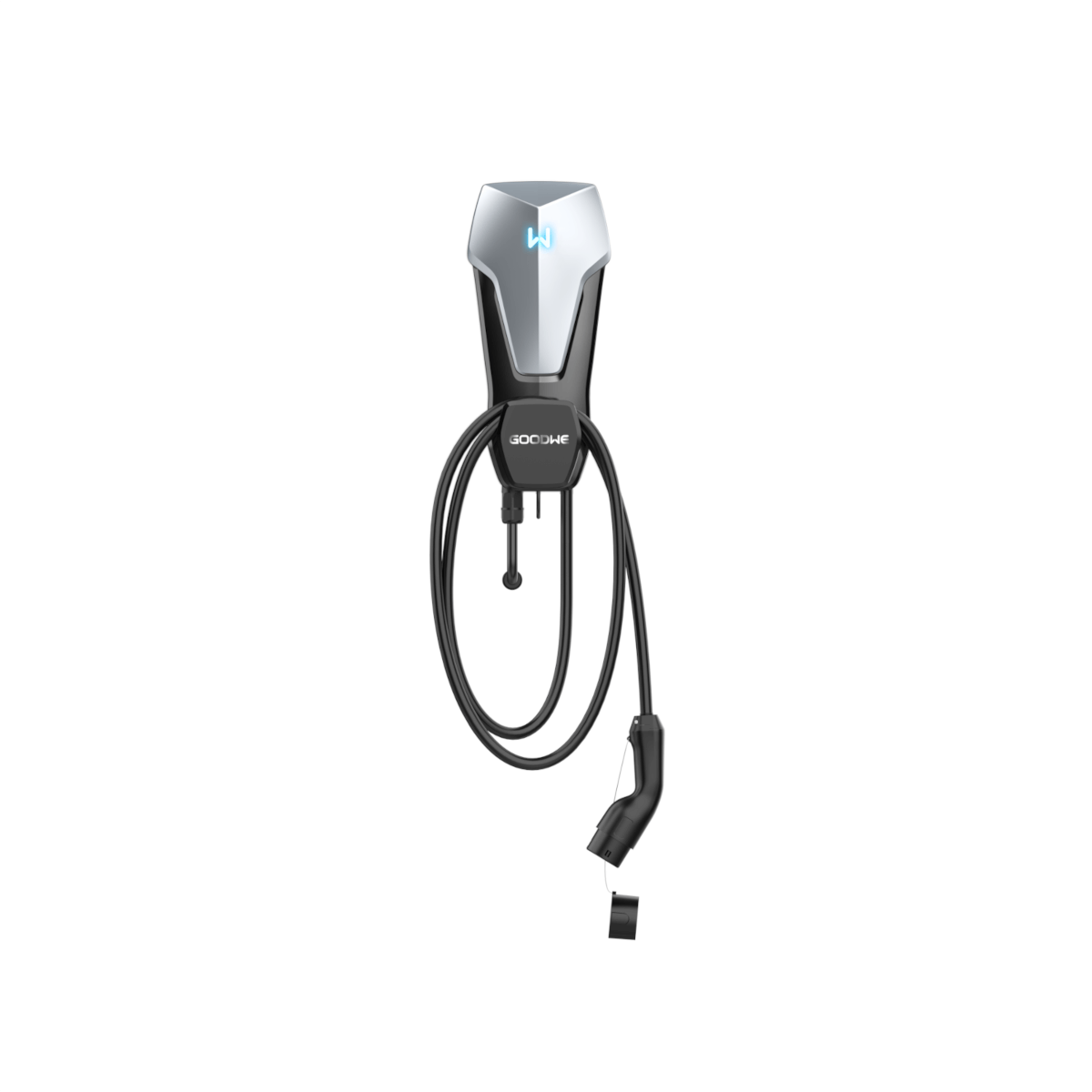

GoodWe EV Charger HCA G3 11 kW
| Type of manufacturer: | GW11K-HCA-G30 |
|---|---|
| Manufacturer Art. No.: | CAC0011-02-00P |
| Art. Nr.: | 16518 |
| Pieces per package unit: |
|
| Power: | 11 kilowatt |
| Number of charging points: | 1 |
| Access control: | RFID |
| AC phases: | 3 |
| Surplus charging: | Yes |
| Charging port: | Cable |
| Energy meter: | No measurement |
| Electric charging system: | Charging station, Private, Wallbox |
Prices are only visible to business customers upon successful registration.
- New
- Example image
Product number:
16518
-
-
{ "id": "2e3d4b97992555be8c3414c5a074303a", "item_brand": "", "item_name": "GoodWe EzManager3000", "item_id": "15042", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "2e3d4b97992555be8c3414c5a074303a" } }
-
Description
GoodWe EV Charger HCA G3 11 kW – smart charging with PV electricity
The HCA G3 is GoodWe’s third-generation Wallbox and the centrepiece of the GoodWe energy system. It works seamlessly with the Inverter, Battery storage system and the EzManager3000, prioritising charging with Solar power – and, if desired, optimising charging to suit your electricity tariff. With a capacity of 11 kW, it is the ideal choice for a detached house – subject to registration but not requiring a licence.
Thanks to dynamic load management and group load balancing, the system scales up as needed: from a single Wallbox to a networked charging fleet for blocks of flats and commercial premises. You can also integrate the HCA G3 into open backend systems via OCPP 1.6J. The Wallbox is already ISO 15118-compliant.
Product benefits
- Surplus PV charging and charging modes: fast charging, PV priority, PV + battery, time-controlled, AI charging*
- Dynamic load management**
- Integrated phase switching
- Integrated residual current detection: AC 30 mA + DC 6 mA
- Integrated Type II AC overvoltage protection
- Integrated energy metering
- OCPP 1.6J and Modbus TCP
- For indoor and outdoor use, IP65, IK08
Product features: GoodWe EV Charger HCA G3 11 kW (GW11K-HCA-G30)
- Charging power: 11 kW
- Rated current: 16 A
- Mains connection: 3-phase, 400 V (3L/N/PE), 50/60 Hz
- Charging connection: Type 2 charging cable, 7.5 m
- Communication: Bluetooth, Wi-Fi, LAN, RS485 (×2); Vehicle: PLC
- Operation: App, LED; Start via Auto-Start, app or RFID
- Protection class I, protection rating IP65, impact resistance IK08
- Operating temperature: −30 to +50 °C
- Dimensions: 235 × 360 × 110 mm (W × H × D)
- Weight: 6.3 kg
- Installation: Wall or floor (optional stand)
* AI charging and group load management only when used in conjunction with the GoodWe EzManager3000.
** Dynamic load management only when used in conjunction with a GoodWe Inverter or Smart meter.
Contents
- 1 × GoodWe EV Charger HCA G3 11 kW (GW11K-HCA-G30) with 7.5 m charging cable
- 2 × RFID cards
-
