GoodWe Lynx C60 GW60KWH-D-10
| Type of manufacturer: | GW60KWH-D-10 |
|---|---|
| Manufacturer Art. No.: | BCT0600-01-00P |
| Art. Nr.: | 11331 |
| Pieces per package unit: |
|
| Battery type: | LFP |
| Charging power: | 30 kW |
| Commercial storage type: | Modular without inverter |
| Communication: | CAN |
| Discharging power: | 30 kW |
| Installation location: | Outdoor |
| Power: | 30 kW |
| Usable capacity: | 60 kWh |
| Warranty: | 10 years |
| WEEE-Number: |
|
Prices are only visible to business customers upon successful registration.
On request
Product number:
11331
-
-
{ "id": "eb99e30504c35bc1814f34334cbeba43", "item_brand": "", "item_name": "GoodWe ET 15 - GW15K-ET", "item_id": "8717", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "eb99e30504c35bc1814f34334cbeba43" } } -
{ "id": "5daae379fcff5a73805e0521a4bd3836", "item_brand": "", "item_name": "GoodWe ET 20 - GW20K-ET", "item_id": "8718", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "5daae379fcff5a73805e0521a4bd3836" } } -
{ "id": "48e6ae47a7de58bcbbbe2b6ab2234e47", "item_brand": "", "item_name": "GoodWe ET 25 - GW25K-ET", "item_id": "8719", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "48e6ae47a7de58bcbbbe2b6ab2234e47" } } -
{ "id": "bb408b314fd45da5896c6c02ea7427d1", "item_brand": "", "item_name": "GoodWe ET 29.9 - GW29.9k-ET", "item_id": "8720", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "bb408b314fd45da5896c6c02ea7427d1" } }
-
Description

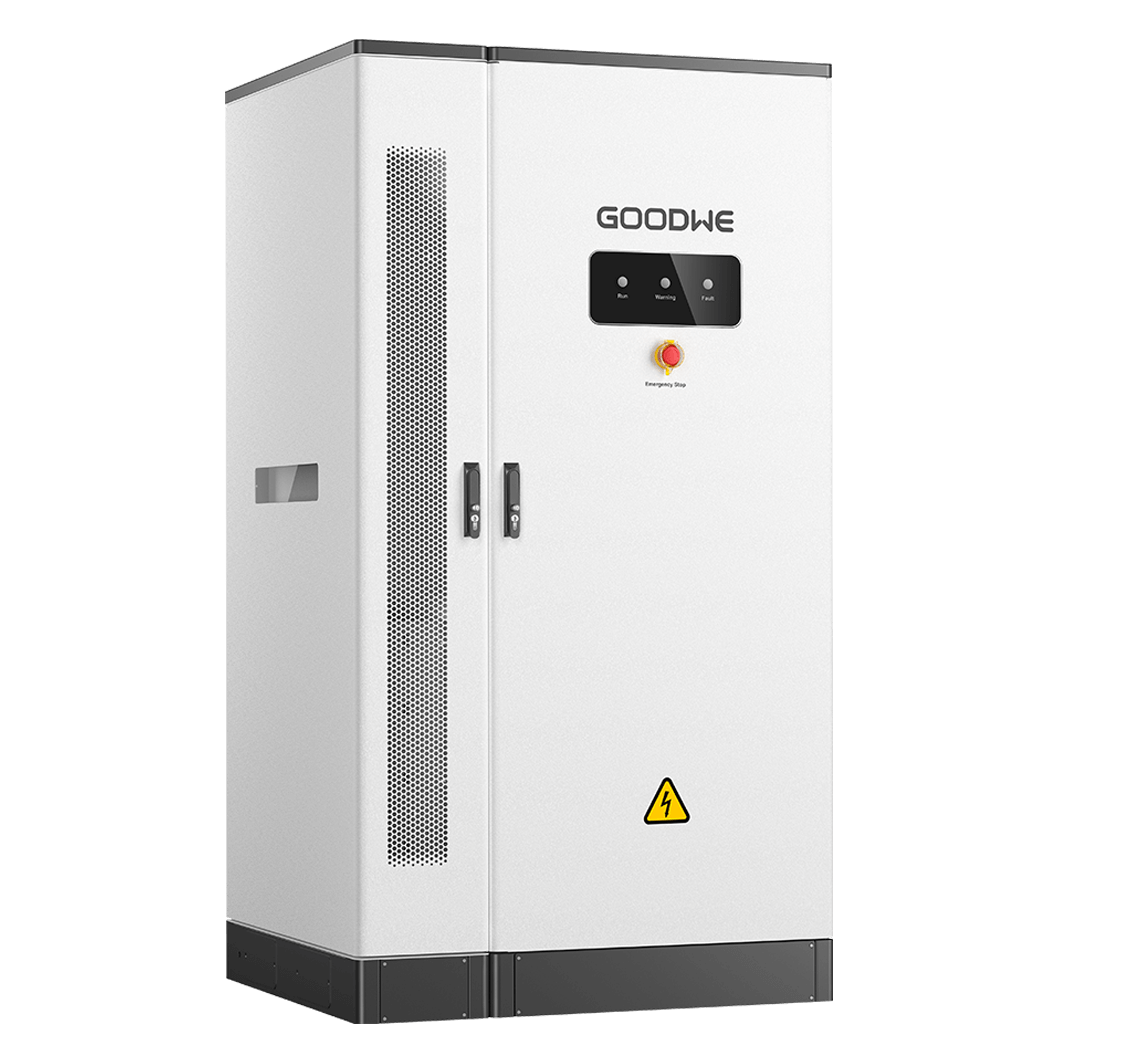

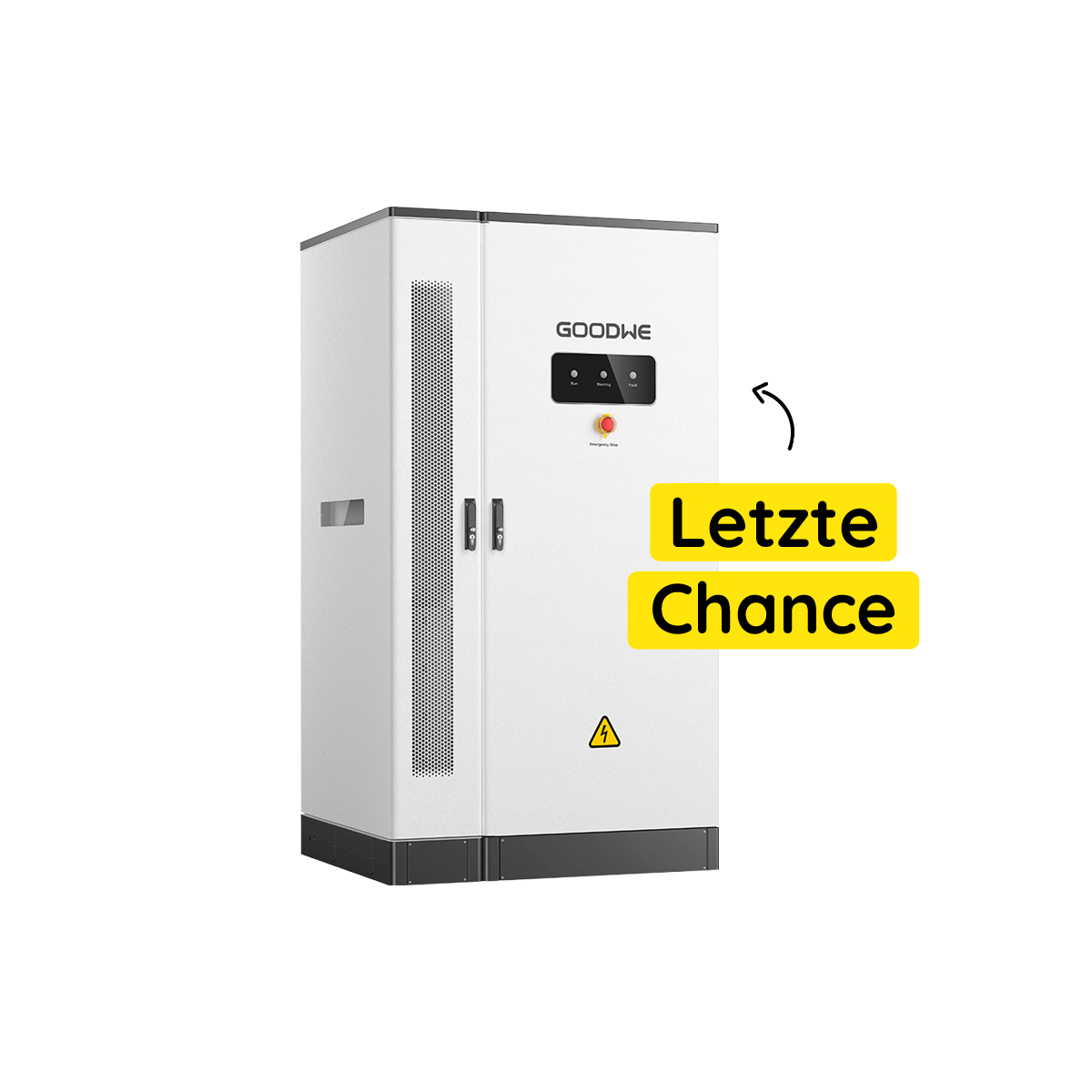

GoodWe Lynx C outdoor commercial battery system with 60 kWh – GW60KWH-D-10
GoodWe ET 15-30 variants are not included in the scope of delivery. Depending on the design, the inverter must be ordered separately.
GoodWe has launched the Lynx C 60 kWh outdoor commercial battery system. Its cabinet is divided into two compartments, one of which is used for the ET 15-30 series. The hybrid inverter must be ordered separately for the battery system. Depending on the design, the 15 kW – 30 kW variant can be integrated. The 11 battery modules (LFP) and the battery management system (BMS) are located in the second compartment of the outdoor system housing. The outdoor battery system can effectively manage temperature through heating and cooling mechanisms and has a fire extinguishing system.
Product advantages
- Outdoor battery system with protection class IP 55
- Heating and cooling mechanisms
- Various power classes possible thanks to the integration of the ET 15-30 series
- Parallel connection of up to 3 battery systems with 60 kWh each (total: 180 kWh)
- Peak shaving, backup power and self-consumption optimisation thanks to the ET 15-30 series
Product features
- Usable battery capacity: 60 kWh
- Number of battery modules: 11 with 5.76 kWh each
- Nominal voltage: 633.6 V
- Max. Charging/discharging current: 96 A
- Communication: CAN
- Operating temperature range: Discharge: -25°C – 55 °C
- Operating temperature range: Charge: 0°C – 55°C
- Dimensions: 2050 x 1108 x 1111.5 mm (H x W x D)
- Total weight: 1029.5 kg
- Protection class: IP 55
- Product warranty: 10 years
- Performance guarantee: 10 years
Compatible with:

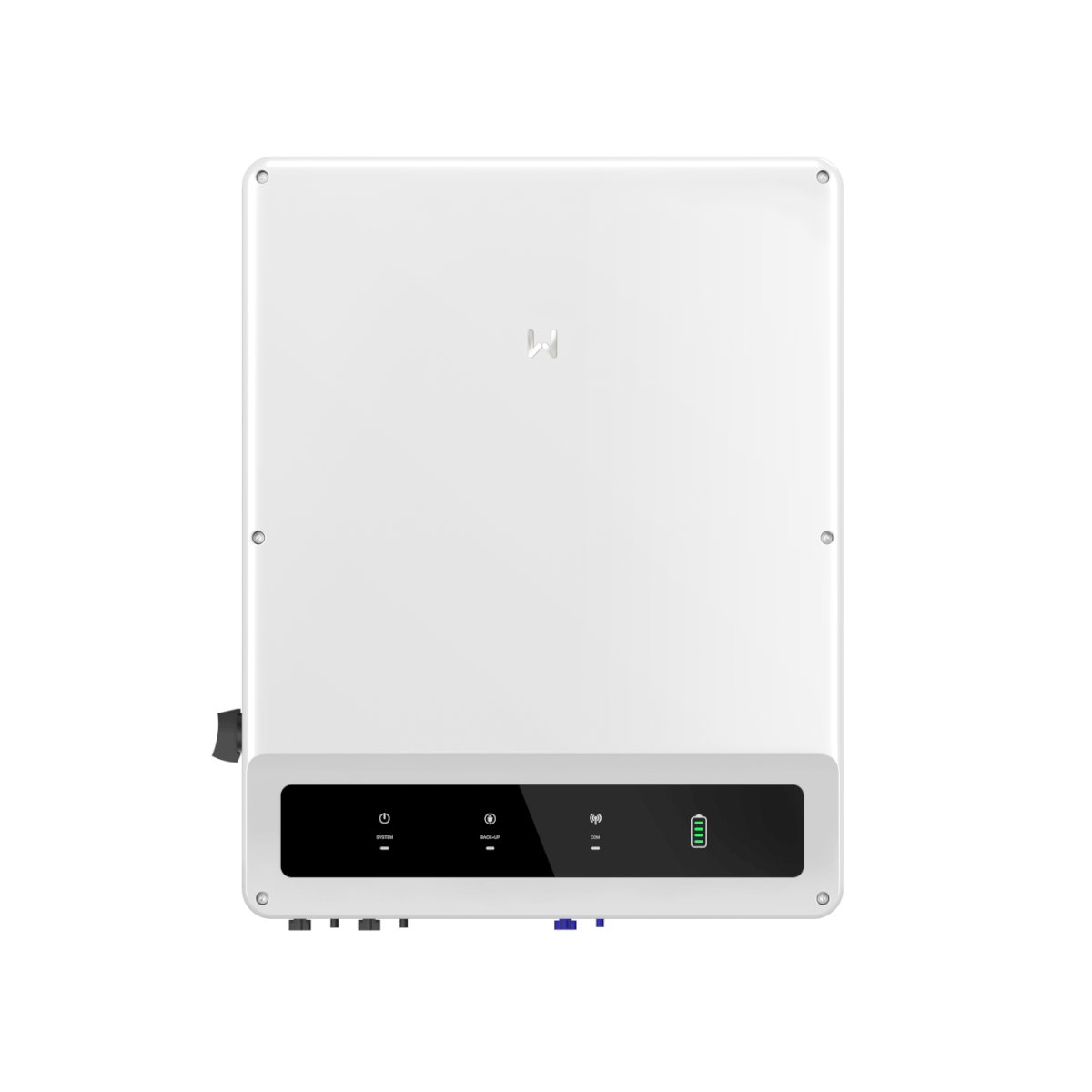

- GoodWe ET 15-30 series
-
Matching accessories
-

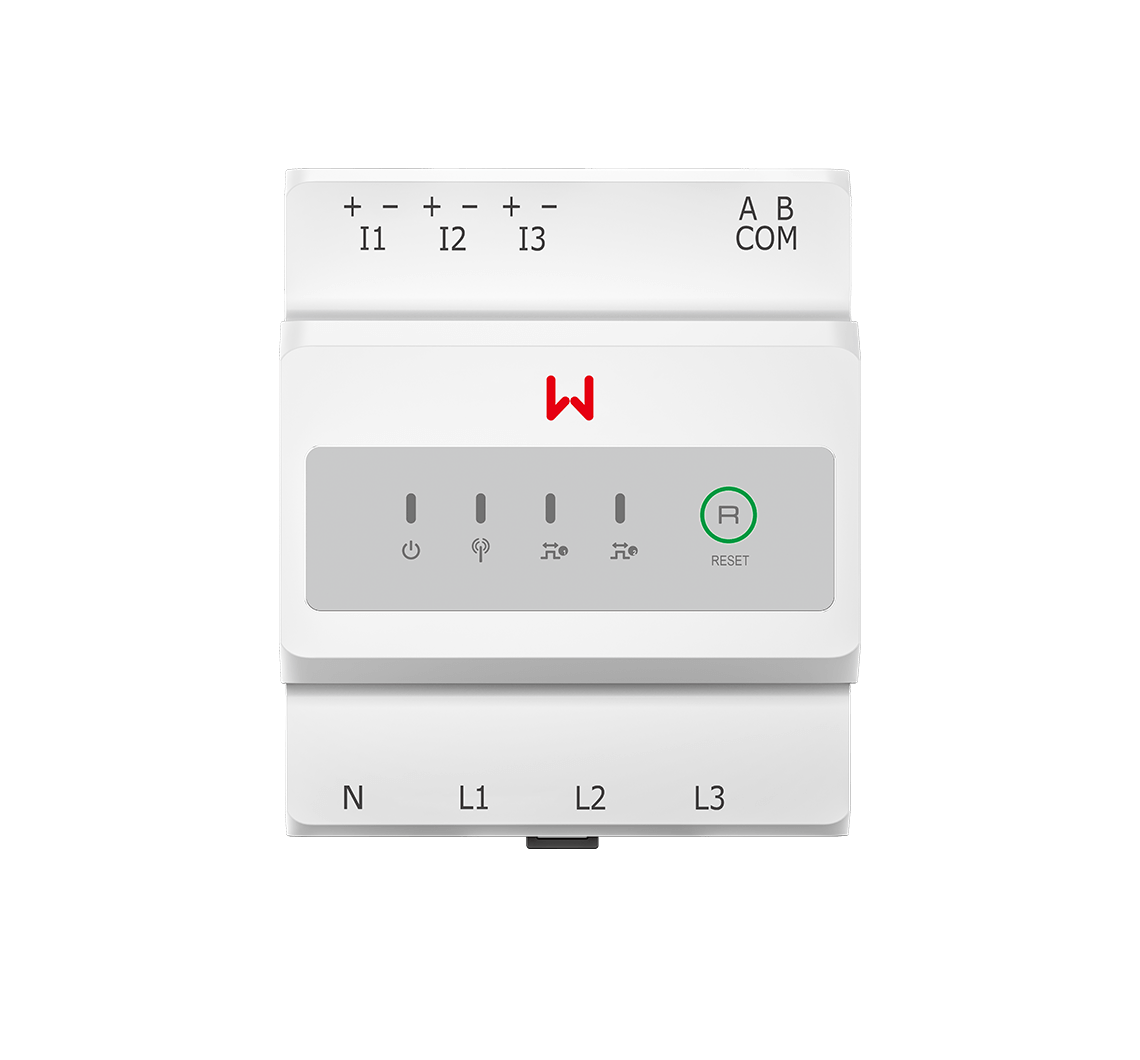

GoodWe Smart Meter GM330 (3-phase)- Type of manufacturer: GM330
