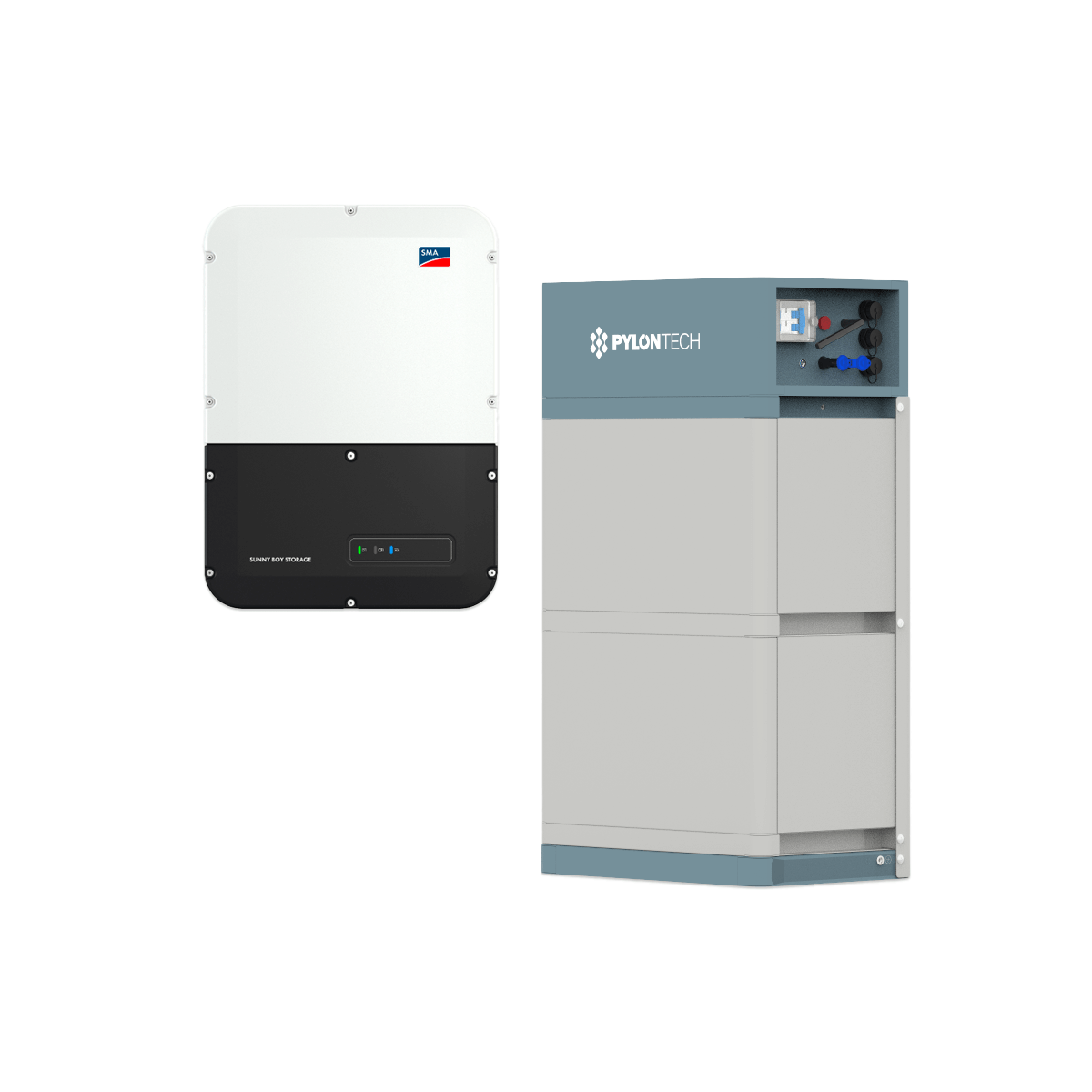

Pylontech Force-H2 7.1 kWh with SMA Sunny Boy Storage 6.0
| Art. Nr.: | 11296 |
|---|---|
| Inverter: | SMA Sunny Boy Storage 6.0 |
| Phases: | 1 |
| Solar battery: | Pylontech Force-H2 7,1 kWh |
| Net capacity: | 6.75 kWh |
| Battery type: | High volt lithium-iron-phosphate |
| Package type: | 1-phase, High voltage battery, Solar battery packages, Solar battery retrofit |
-
-
{ "id": "f851c43d16a85d83b49397b02bf44fe0", "item_brand": "", "item_name": "SMA Sunny Home Manager 2.0", "item_id": "2781", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "f851c43d16a85d83b49397b02bf44fe0" } } -
{ "id": "ca63fe68321f59f38c50f350b50ac08c", "item_brand": "", "item_name": "SMA Energy Meter-20", "item_id": "2837", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "ca63fe68321f59f38c50f350b50ac08c" } }
-
Pylontech Force-H2 7.1 kWh with SMA Sunny Boy Storage 6.0
High-voltage battery storage systems such as the Pylontech Force H2 are all the rage. With the SMA Sunny Boy Storage 6.0, you can operate up to two additional high-voltage batteries alongside it on a single Inverter. SMA is thus presenting the first multi-string battery Inverter. Thanks to its proven AC coupling, the Sunny Boy Storage is ideal for new and retrofit systems with an annual electricity consumption of 3,000 kWh to 15,000 kWh.
To go with this, you’ll receive the latest version of the flexible stacking system from Pylon in configurations ranging from 192 V to 480 V and capacities from 7.1 kWh to 17.75 kWh. With three storage units, you can achieve up to 53.25 kWh. And thanks to the newly designed system, you save valuable time when connecting the battery modules to one another.
Find out how to get the latest firmware for the battery in our tech tip!
Product benefits of the Pylontech Force H2 7.1 kWh
- Flexible modular design
- 95% DOD
- 10-year warranty
- Wide Inverter compatibility
Product benefits SMA Sunny Boy Storage 6.0
- High-voltage battery inverter
- Wall bracket already integrated into the rear of the housing
- Wi-Fi and web-based user interface for configuration
- AC system for new installations and retrofitting
- Can also be used flexibly with non-SMA Inverters via an additional SMA Energy Meter
- Quality: Made in Germany
Product features Pylontech Force H2 7.1 kWh
- Net capacity: 6.75 kWh
- Nominal voltage: 192 V
- Charge/discharge current: 18.5 A
- Max. charge/discharge current: 40 A
- Cell chemistry: LFP
- Protection class IP55
- Weight: 82 kg Dimensions: 822 x 450 x 296 (HxWxD)
- Communication: CAN/RS485
Product features Sunny Boy Storage 6.0
- 4.6 kW system output, single-phase AC
- 3 independent high-voltage battery inputs, max. 600 V battery voltage
- Integrated Wi-Fi and Speedwire
- Protection class: IP 65
- Product warranty: 10 years upon registration here
- Dimensions: 730 x 535 x 198 mm (H x W x D)
- Weight: 26 kg
Included in the package
- Pylontech Force-H2 7.1 kWh
- SMA Sunny Boy Storage 6.0
The new series from SMA features an integrated emergency power supply that can be started manually in the event of a power cut. An optional grid transfer switch can even supply all three phases fully automatically with phase coupling in the event of a power cut.
-
SMA Sunny Boy Storage 3.7, 5.0, 6.0: InstallationThe YouTube video has been blocked due to the cookie settings.
-
