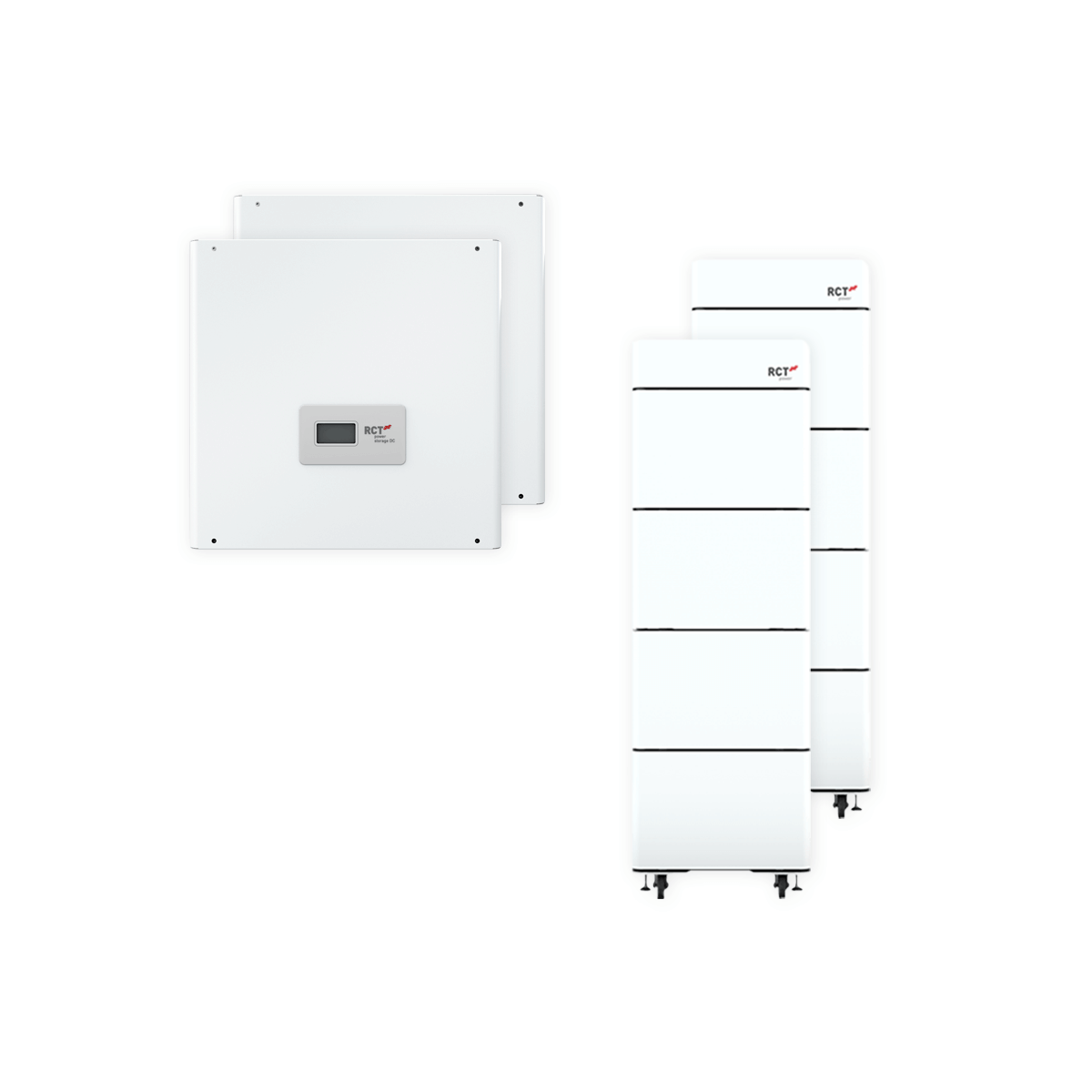

RCT Power Battery DT 15.4 & RCT Power Storage DC 10.0 & 6.0
| Manufacturer Art. No.: | 210-0003 + 220-0001 + 110-0004 + 110-0002 |
|---|---|
| Art. Nr.: | 12565 |
| Accessoires: | 10 Jahre |
| Battery type: | High volt lithium |
| Inverter: | RCT Power Storage DC 10.0 + 6.0 |
| Net capacity: | 13.8 kWh |
| Package type: | High voltage battery |
| Phases: | 3 |
| Solar battery: | RCT Power Battery DT 15.4 |
| WEEE-Number: |
|
Prices are only visible to business customers upon successful registration.
Available from stock
Product number:
12565
Description
RCT Power Battery DT 15.4 with RCT Power Storage DC 10.0 and 6.0
The RCT battery is a resource-saving and safe solution for use in private residential buildings. The modular system ensures flexible retrofitting and thus adapts optimally to the changes and requirements of the user. In conjunction with the RCT Power Storage and Switch, all consumers can be supplied with power from the Power Battery 7.6 and photovoltaic system in the event of a power failure.
Advantages of the RCT Power Battery
- Scalable and expandable
- Simple transportation and installation thanks to its modular design and easy cabling
- Backup power supply is possible with the optional RCT Power Switch
- Lithium-iron-phosphate cell composition
- German battery management system
Features of the RCT Power Battery DT 15.4
- 2 x 6.9 kWh usable storage capacity
- 6.0 kVA maximum discharge capacity
- Dimensions: 2 x 1120 x 340 x 340 mm (HxWxD)
- Weight: 2 x 102,0 kg
- Operating temperature: +5°C to 40°C
- IP 42
- 10-year product guarantee
Advantages of the RCT Power Storage DC
- Hybrid inverter
- Backup power capability
- High-voltage battery connection
- Flexible and retrofittable
- WiFi and LAN, no internet access required
- Multifunctional communication unit for connecting various additional devices
Features of the RCT Power Storage DC 10.0
- 3-phase mains connection
- 10 kVA AC power
- 380 - 800 V MPP voltage range
- transformerless concept
- 2 MPP trackers
- Interfaces: WIFI, LAN, RS485, multifunctional relay
- Dimensions: 570 x 585 x 200 mm (HxWxD)
- Weight: 26.0 kg
- IP 42
- 10-year product warranty
Features of the RCT Power Storage DC 6.0
- 3-phase mains connection
- 6 kVA AC power
- 265 - 800 V MPP voltage range
- transformerless concept
- 2 MPP trackers
- Interfaces: WIFI, LAN, RS485, multifunctional relay
- Dimensions: 570 x 585 x 200 mm (HxWxD)
- Weight: 26.0 kg
- IP 42
- 10-year product warranty
Scope of delivery
- 2 x Power Battery Master+
- 8 x Power Battery Module 1.9
- 1 x RCT Power Storage DC 10.0
- 1 x RCT Power Storage DC 6.0
Downloads
Downloads
Videos
Videos
-
Easy Plug & Play - Connecting the RCT Power BatteryThe YouTube video has been blocked due to the cookie settings.
-
RCT Power storage system commissioning via AppThe YouTube video has been blocked due to the cookie settings.
-
RCT Power storage system commissioning via AppThe YouTube video has been blocked due to the cookie settings.
-
Matching accessories
-

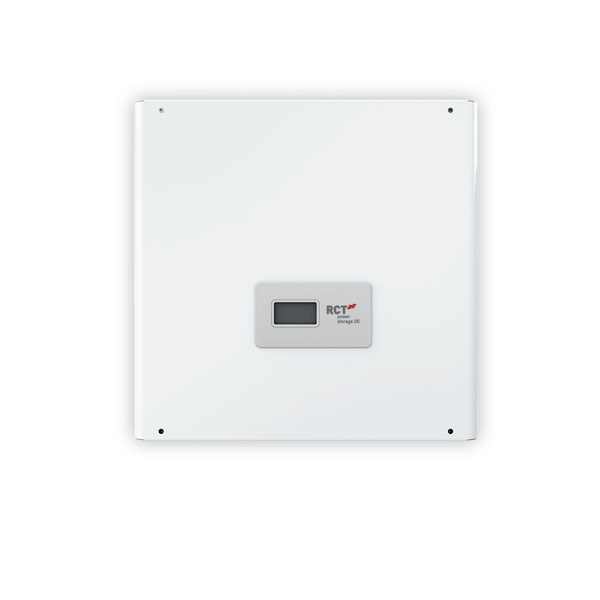

RCT Power Storage DC 4.0
- Art. Nr.: 4009
Available from stock{ "id": "79338f053246509b8a2f9df867153a17", "item_brand": "", "item_name": "RCT Power Storage DC 4.0", "item_id": "4009", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "79338f053246509b8a2f9df867153a17" } } -
RCT Power Storage DC 6.0
- Art. Nr.: 4011
Available from stock{ "id": "865adc3ccfe950b489f3fceb2b645ff3", "item_brand": "", "item_name": "RCT Power Storage DC 6.0", "item_id": "4011", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "865adc3ccfe950b489f3fceb2b645ff3" } } -
RCT Power Storage DC 8.0
- Art. Nr.: 5290
Available from stock{ "id": "0c2382f36d3253efba4c90b0dc749dbc", "item_brand": "", "item_name": "RCT Power Storage DC 8.0", "item_id": "5290", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "0c2382f36d3253efba4c90b0dc749dbc" } } -
RCT Power Switch
- Art. Nr.: 4015
Available from stock{ "id": "f753494d89b952cca2a646904f43e70d", "item_brand": "", "item_name": "RCT Power Switch", "item_id": "4015", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "f753494d89b952cca2a646904f43e70d" } } -
RCT Power Storage DC 10.0
- Art. Nr.: 5291
Available from stock{ "id": "558a249a23355629ace3b5aa8e366ee5", "item_brand": "", "item_name": "RCT Power Storage DC 10.0", "item_id": "5291", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "558a249a23355629ace3b5aa8e366ee5" } } -

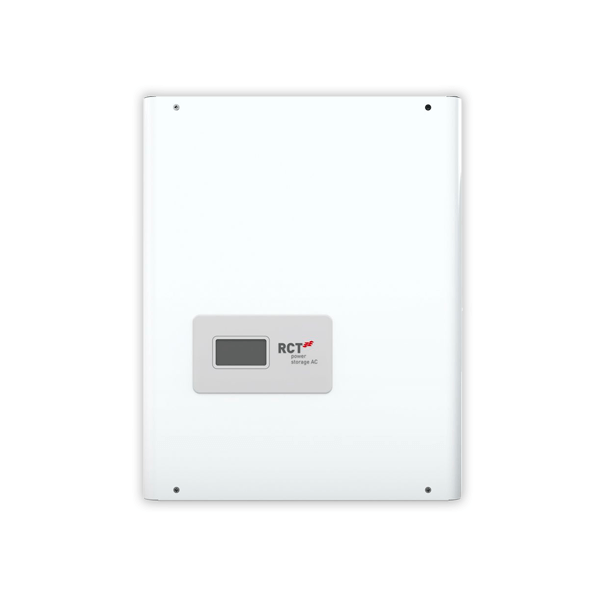

RCT Power Storage AC 6.0
