SolarEdge optimizer P1100-4RM4MBT

Manufacturer Art. No.: P1100-4RM4MBT
Art. Nr.: 6867
Pieces per package unit:
  • per carton
  • per pallet
AC power: 1.1 kW
Inverter type: Optimizer
MPP-Tracker: 1
MPP voltage range: 12,5 - 105 Volt
Warranty: 25 years
WEEE-Number:
  • DE20777619
Prices are only visible to business customers upon successful registration.
  • Remaining quantity
Product number: 6867
Prices are only visible to business customers upon successful registration.
  • Remaining quantity
Product number: 6867
Description

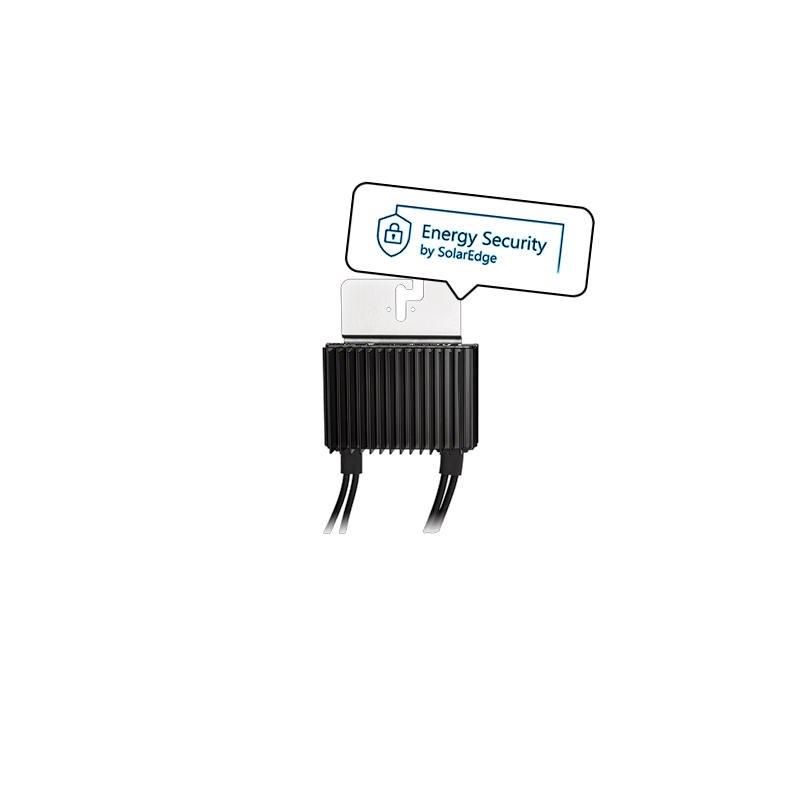

SolarEdge P1100 Power Optimizer for Solar Modules up to 1100 Watt

SolarEdge power optimizers help get the most power out of any PV system. The P1100 optimizer is perfect for modules up to 1100 Wp.

Product advantages:

  • Suitable for SE25K and larger
  • Maximum power at module level
  • Not the entire string is affected by shading
  • Continuous MPP tracking
  • Monitoring on module basis possible
  • More performance with shading and different orientations
  • Modules of various power classes can be combined without losses
  • For up to 2 high-performance or bifacial modules

Product features of the SolarEdge optimizer P1100-4RMXMBT:

  • Max. nominal input power: 1100 W
  • MPPT operating range 12.5 – 105 V
  • 14 A max. short circuit current
  • Min. 14 optimizers per string for 3-phase inverters
  • Simple installation due to MC4 connection
  • 0.16 m input cable
  • 2.4 m output cable
  • SafeDC function automatically reduces the voltage to 1 volt pro module in case of fault
  • Easy installation on substructure with T-head bolt
  • Compatible with all SolarEdge inverters

Power losses for an entire string due to shading or different orientations are a thing of the past with SolarEdge power optimizers. Thanks to module-level MPP tracking, each module is controlled individually, allowing the string to deliver the maximum available power. Easy installation and maximum yield is easy with the P1100 optimizers.
