Solinteg MHT-10K-40
| Manufacturer Art. No.: | MHT-10K-40 |
|---|---|
| Art. Nr.: | 15795 |
| Pieces per package unit: |
|
| Phases: | 3 |
| Inverter type: | Asymmetric inverters, Hybrid inverter |
| MPP-Tracker: | 2 |
| AC power: | 10 kW |
| Warranty: | 10 years |
| Communication: | CAN, RS485 |
| MPP voltage range: | 200-950 Volt |
- New
-
-
{ "id": "0827edfcf1d156a3ab19d8f14e828f31", "item_brand": "", "item_name": "Dyness Stack 100 - 20.48kWh", "item_id": "14254", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "0827edfcf1d156a3ab19d8f14e828f31" } } -
{ "id": "5bc516ab276454d5bbe75ddf2805998f", "item_brand": "", "item_name": "Dyness Tower Pro TP19", "item_id": "14118", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "5bc516ab276454d5bbe75ddf2805998f" } } -
{ "id": "ceb656f43a51591bb4df3873303dcafe", "item_brand": "", "item_name": "Dyness Stack 100 - 15.36kWh", "item_id": "14253", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "ceb656f43a51591bb4df3873303dcafe" } } -
{ "id": "e754dec881a15dd699e116b8df31dde1", "item_brand": "", "item_name": "Dyness Tower Pro TP11", "item_id": "14115", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "e754dec881a15dd699e116b8df31dde1" } }
-

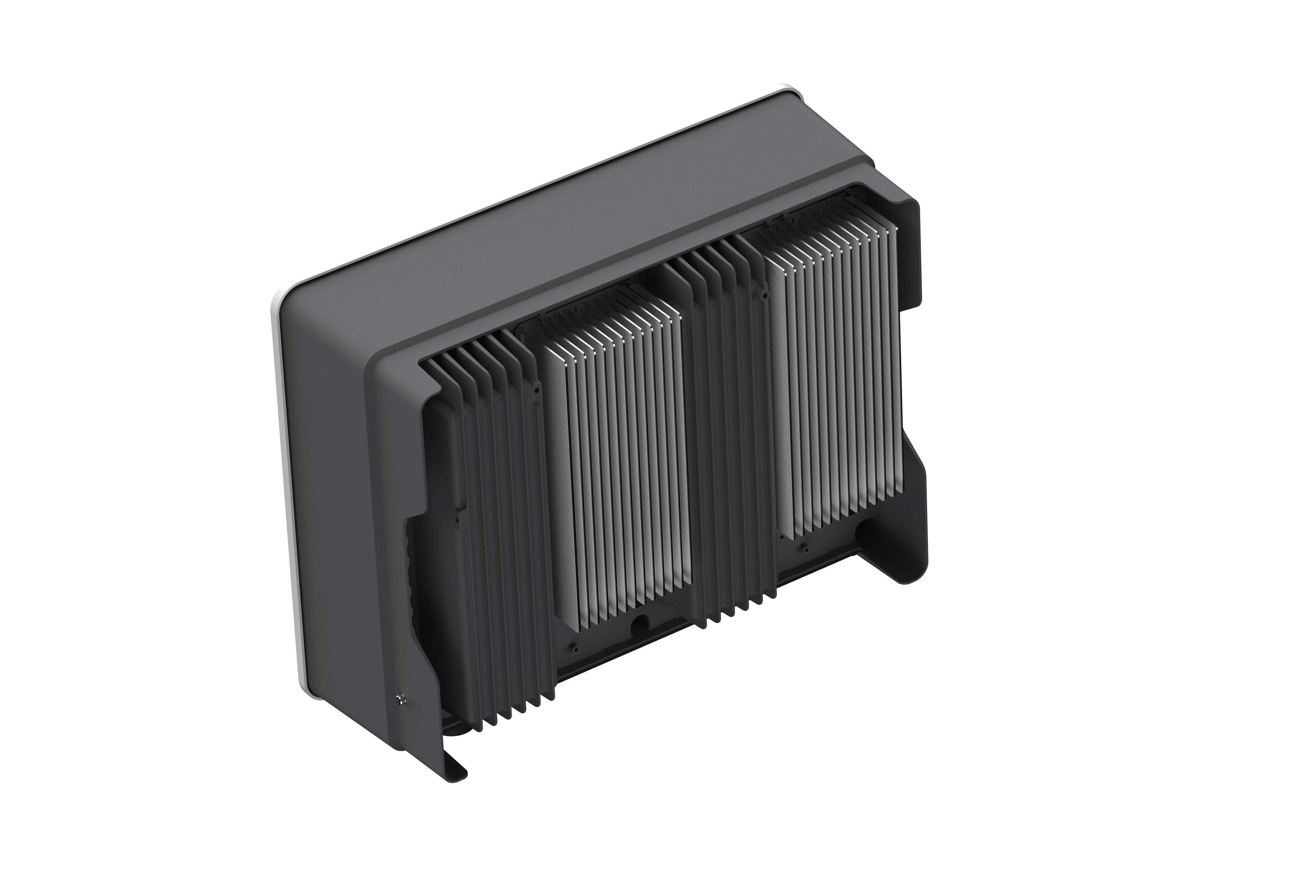

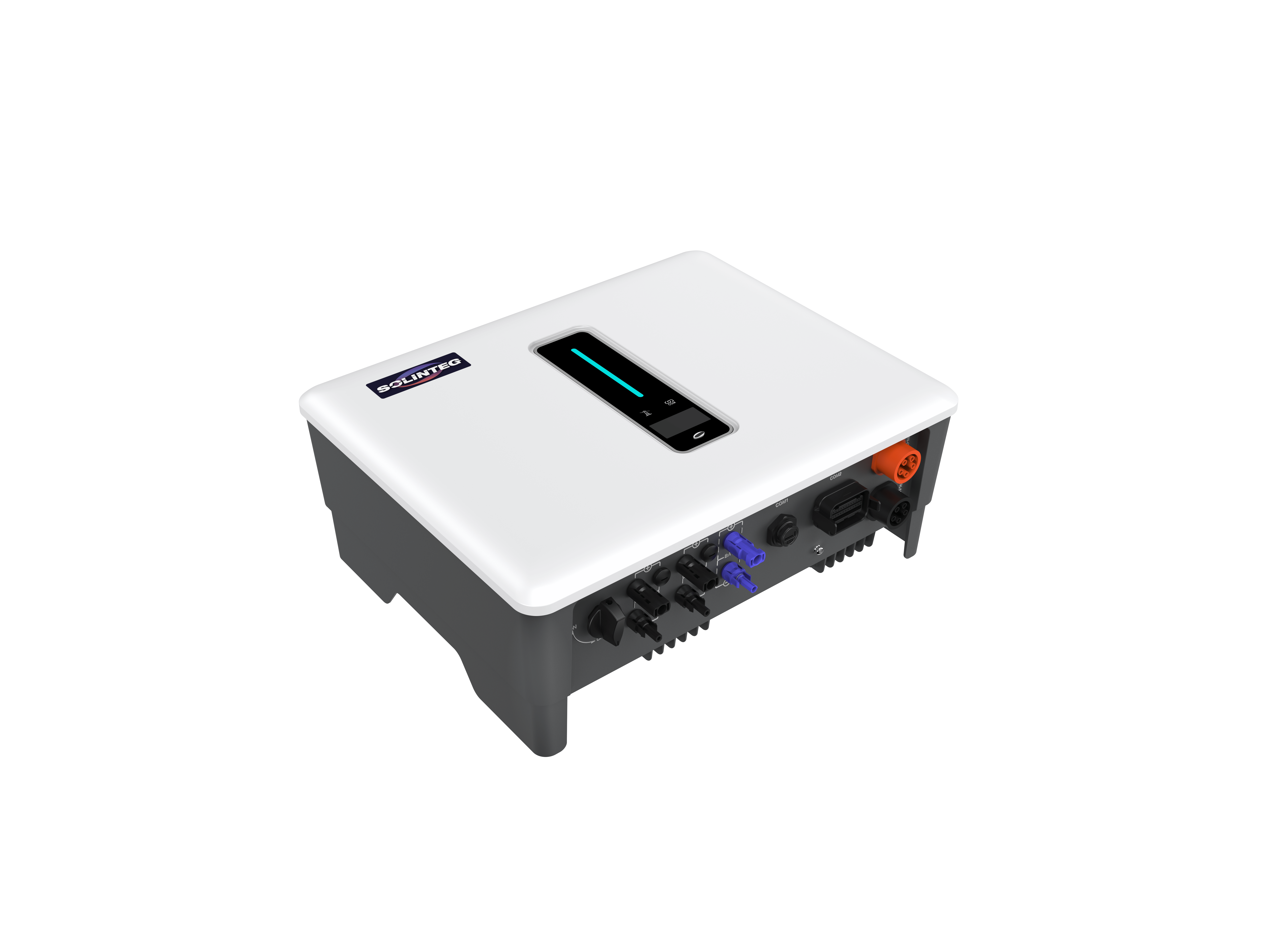

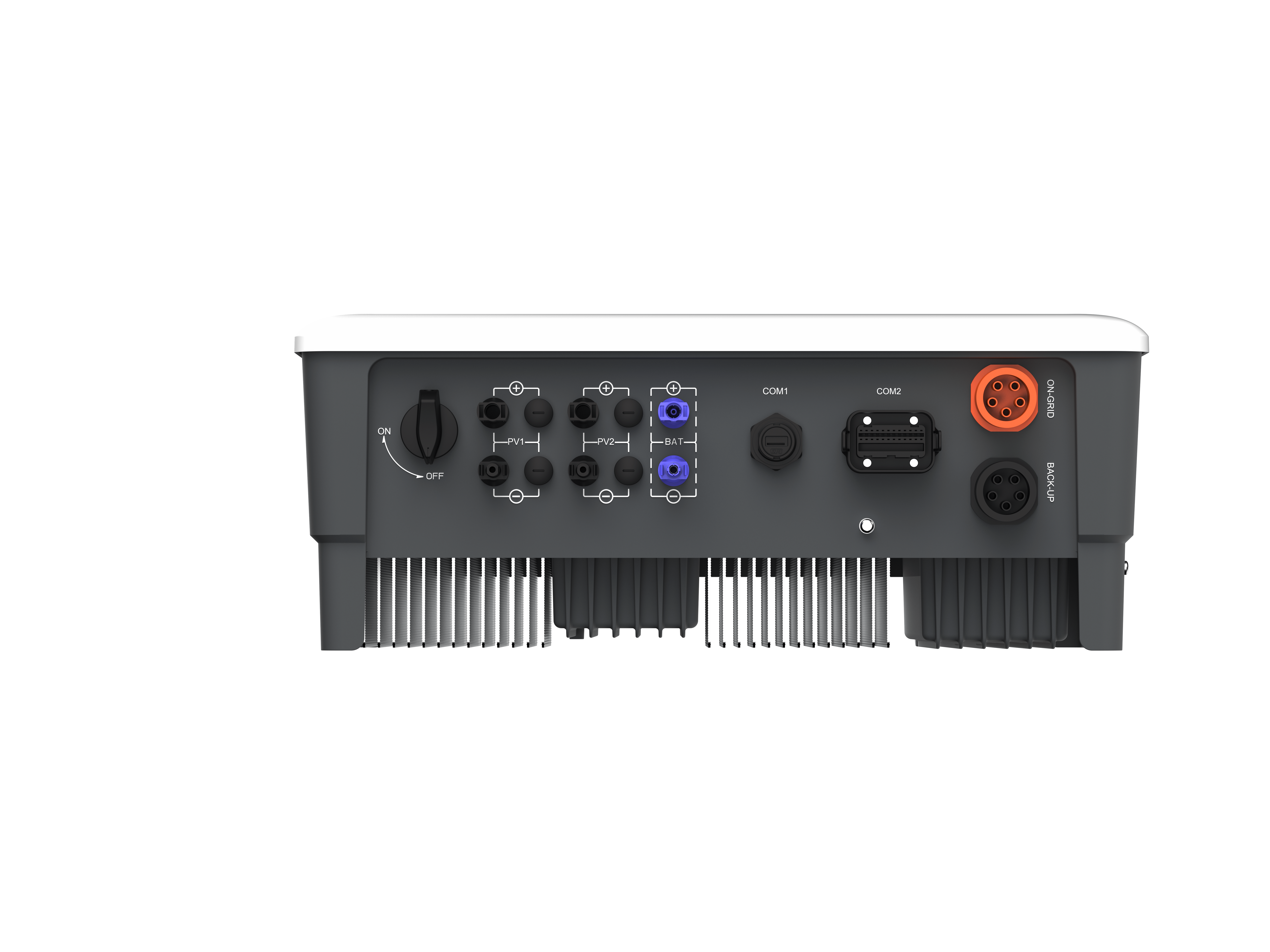

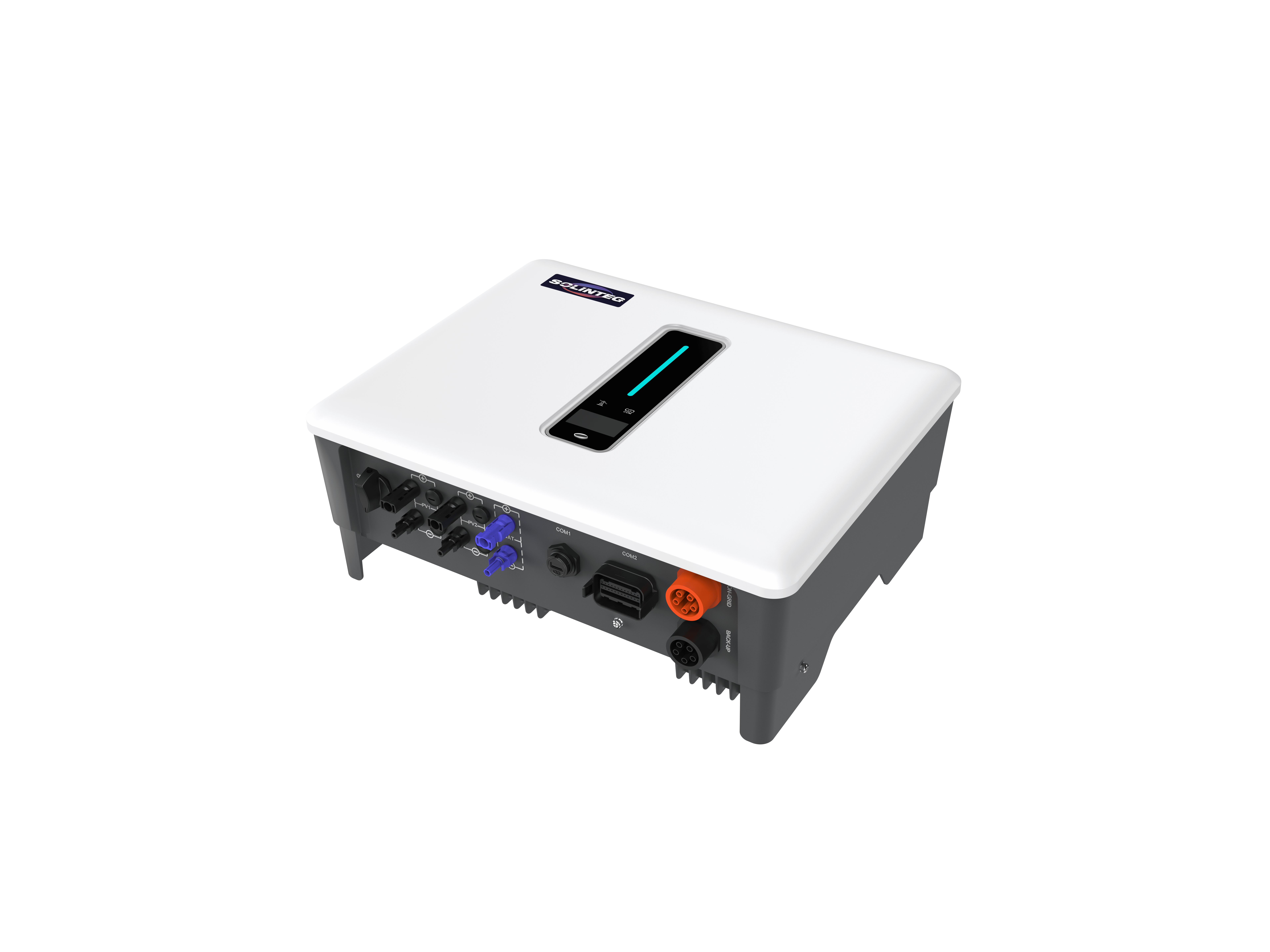

Solinteg MHT-10K-40 – 10 kW three-phase hybrid inverter
The Solinteg MHT-10K-40 is a high-performance three-phase hybrid inverter, specially developed for modern Photovoltaic systems with high-voltage Battery storage systems. Thanks to its combination of high efficiency, flexible energy management and emergency power supply, it is ideally suited to detached houses and small commercial premises. The inverter offers a rated output of 10 kW and, thanks to two independent MPPT trackers, enables efficient use of solar energy. It supports an asymmetrical phase load of up to 110 per cent, thereby ensuring maximum utilisation of the energy generated even with uneven consumption.
Product benefits
- Max. efficiency of up to 98.2%
- Asymmetrical phase load of up to 110 per cent
- IP65 protection rating – suitable for outdoor installation
- Low-noise operation < 25 dB
- Intelligent energy management and energy storage
- Elegant design and compact dimensions
Product features
- Rated power: 10 kW
- Max. PV power: 16 kWp
- Number of MPPTs: 2
- Maximum MPPT voltage range: 200–950 V
- Maximum input current per MPPT: 30 A
- European efficiency: 97.5 %
- Communication: RS485, CAN
- Protection rating: IP65
- Dimensions (L × W × H): 534 × 210 × 418 mm
- Weight: 30.5 kg
- Warranty: 5-year standard warranty + 5-year parts warranty (10 years in total)
Solinteg Power Co., Ltd. is an international manufacturer specialising in the development and production of photovoltaic Inverters and energy storage systems. The company focuses on modern technology, high-quality workmanship and the long-term reliability of its products. Solinteg solutions are used worldwide in residential, commercial and industrial projects and meet strict international safety and performance standards.
