Solinteg MHT-8K-25
| Manufacturer Art. No.: | MHT-8K-25 |
|---|---|
| Art. Nr.: | 15797 |
| Pieces per package unit: |
|
| Phases: | 3 |
| Inverter type: | Asymmetric inverters, Hybrid inverter, Project inverter |
| MPP-Tracker: | 2 |
| AC power: | 8 kW |
| Warranty: | 10 years |
| Communication: | CAN, RS485 |
| MPP voltage range: | 200-950 Volt |
- New
-
-
{ "id": "0827edfcf1d156a3ab19d8f14e828f31", "item_brand": "", "item_name": "Dyness Stack 100 - 20.48kWh", "item_id": "14254", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "0827edfcf1d156a3ab19d8f14e828f31" } } -
{ "id": "5bc516ab276454d5bbe75ddf2805998f", "item_brand": "", "item_name": "Dyness Tower Pro TP19", "item_id": "14118", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "5bc516ab276454d5bbe75ddf2805998f" } } -
{ "id": "ceb656f43a51591bb4df3873303dcafe", "item_brand": "", "item_name": "Dyness Stack 100 - 15.36kWh", "item_id": "14253", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "ceb656f43a51591bb4df3873303dcafe" } } -
{ "id": "e754dec881a15dd699e116b8df31dde1", "item_brand": "", "item_name": "Dyness Tower Pro TP11", "item_id": "14115", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "e754dec881a15dd699e116b8df31dde1" } }
-

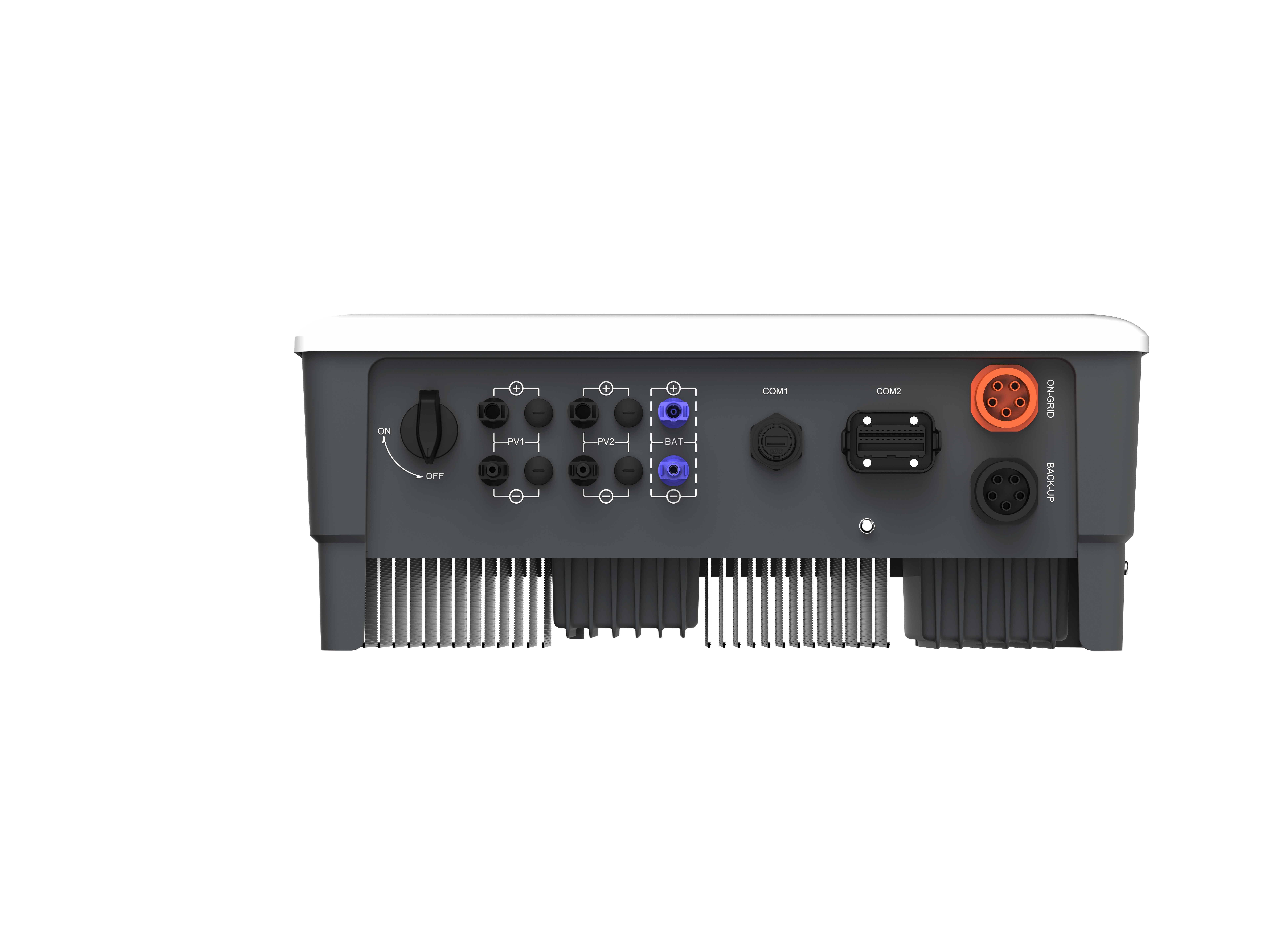

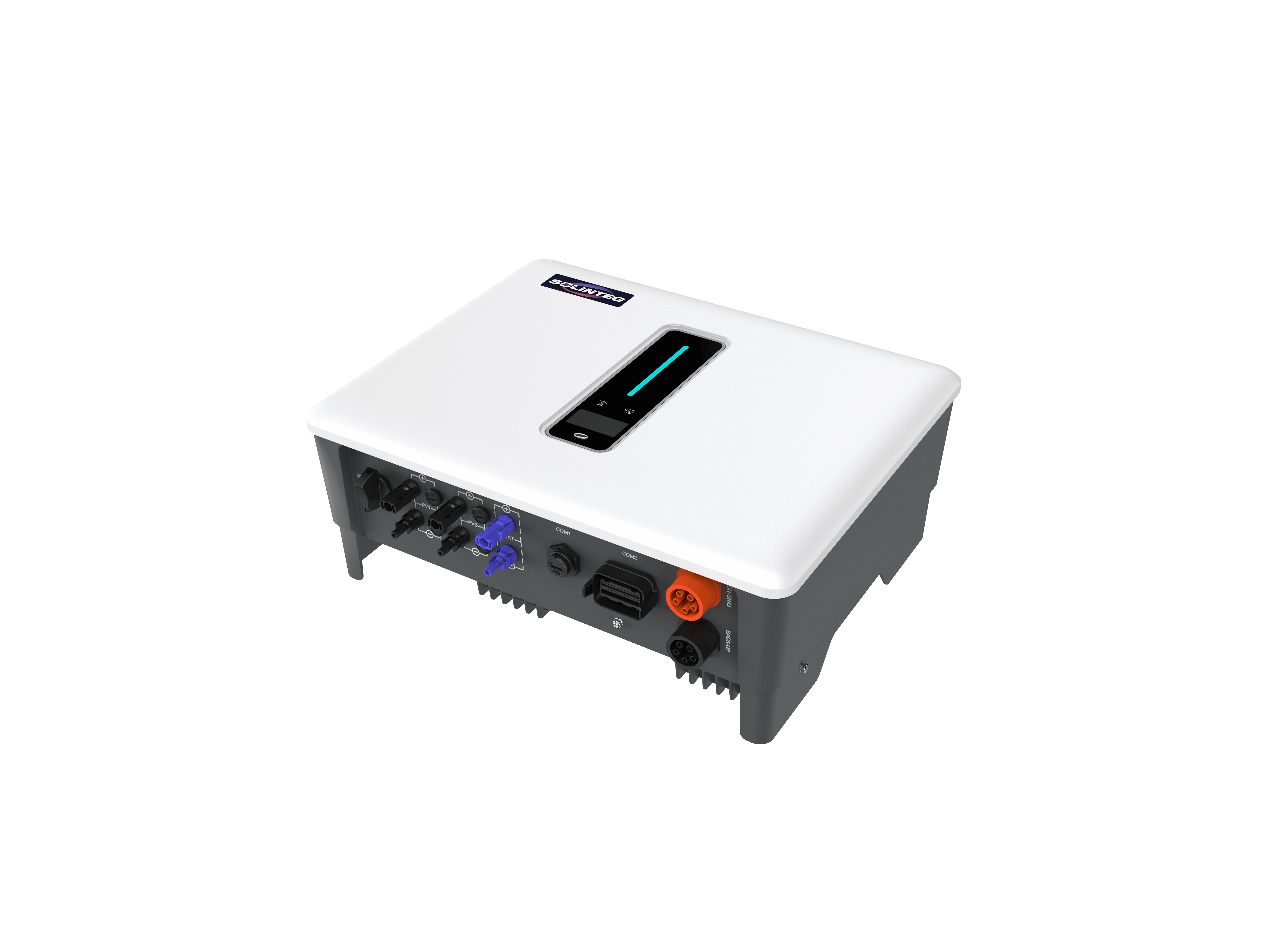

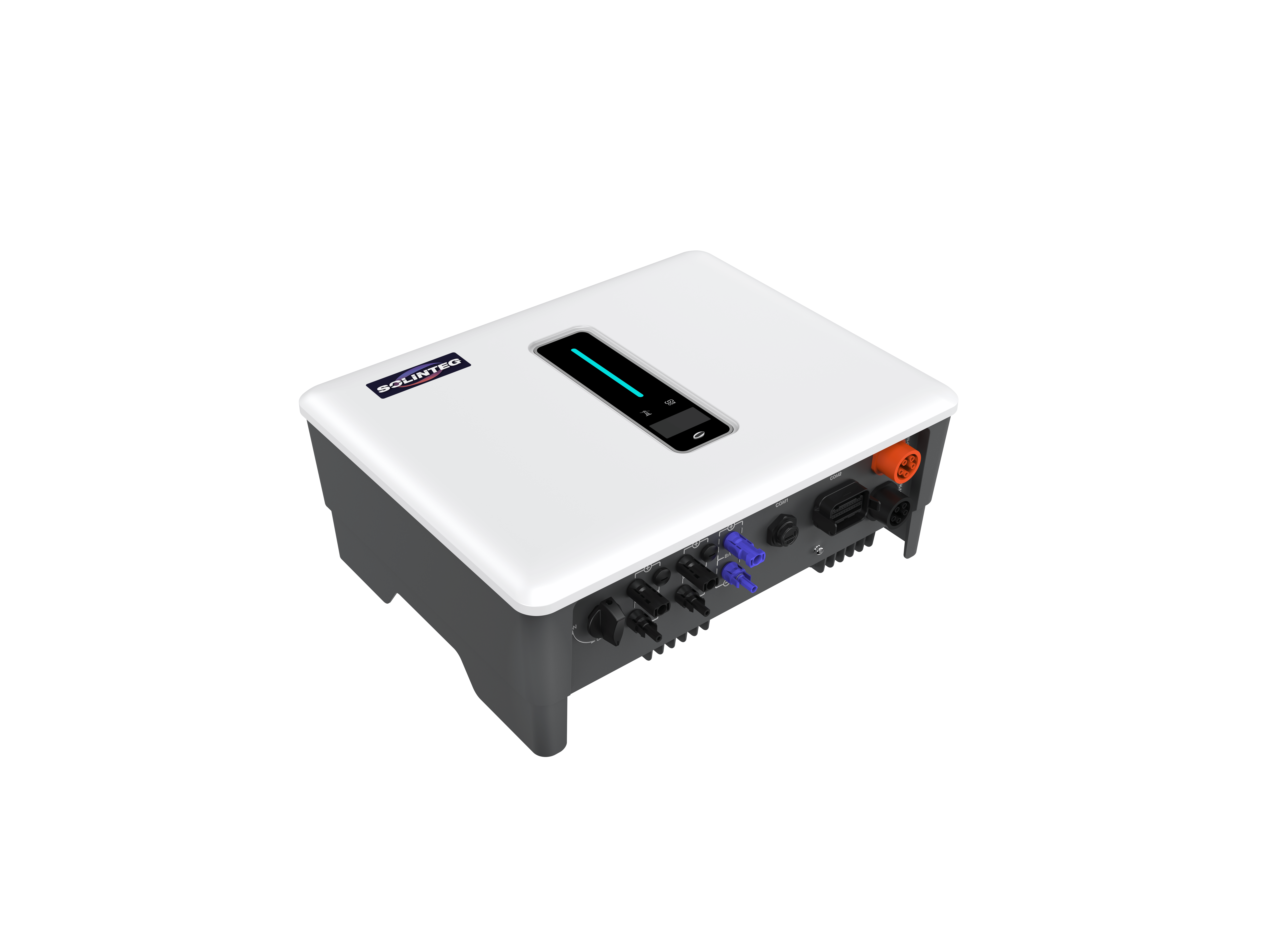

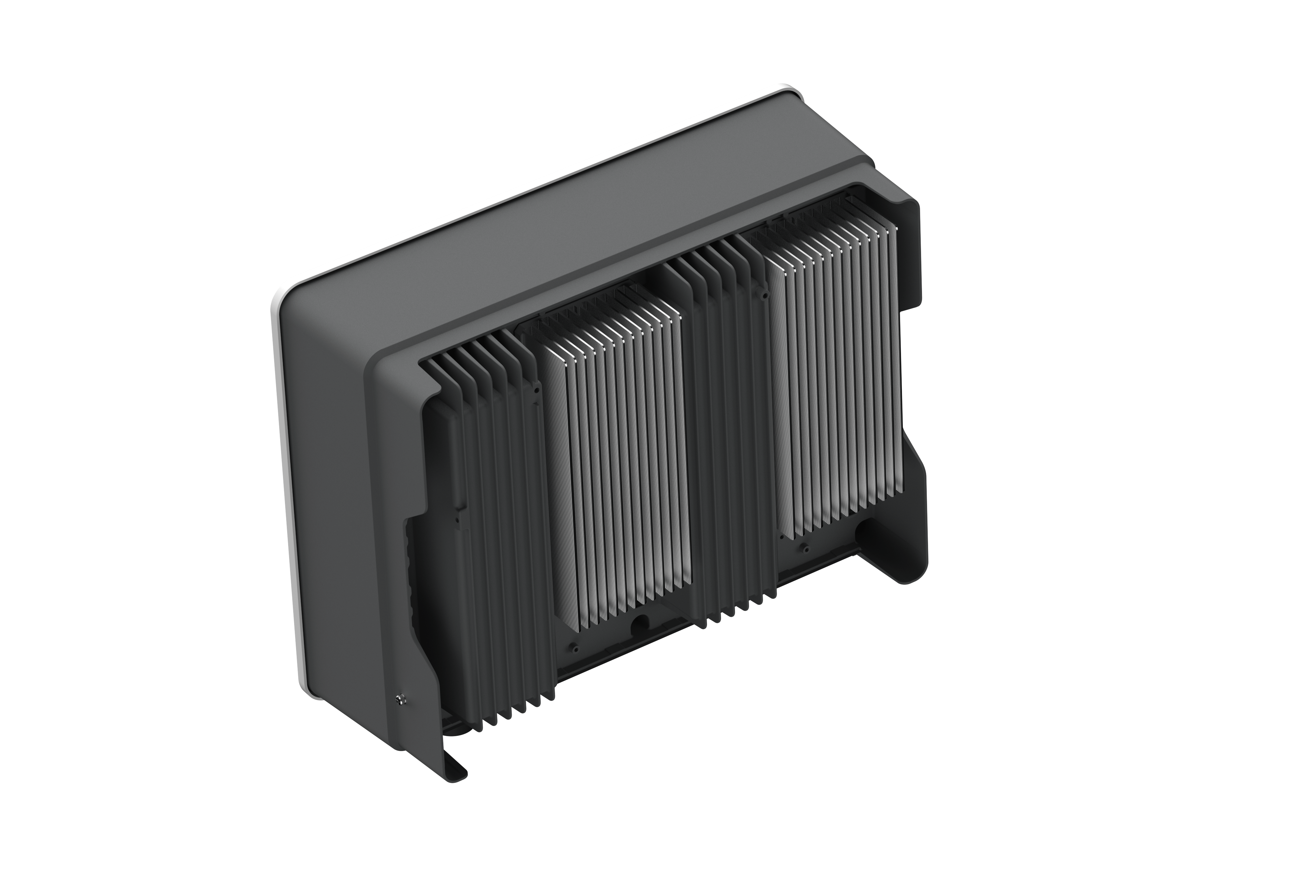

Solinteg MHT-8K-25 Hybrid Inverter 8 kW
The Solinteg MHT-8K-25 is a modern three-phase hybrid inverter designed for small to medium-sized domestic Photovoltaic systems. It enables the efficient combination of energy generation from photovoltaic modules, storage in batteries and a reliable emergency power supply in the event of a grid failure. Thanks to advanced energy management and high efficiency, it helps to maximise Self-consumption and increase energy self-sufficiency.
Product benefits
- Ideal for detached houses with moderate electricity consumption
- 8 kW charging and discharging capacity for Battery storage system
- Two MPP trackers for flexible string configuration
- Back-up power function with switchover time < 10 ms
- Up to 160 per cent DC oversizing possible
- Very quiet operation (< 25 dB)
- Compact design and easy installation
- 110% unbalanced load capability for optimised Self-consumption
Product features
- Rated AC power: 8 kW
- Max. PV power: 10.4 kWp
- MPPT: 2
- MPPT voltage range: 200 – 950 V
- Max. DC voltage: 1000 V
- Max. input current: 15 A per MPPT
- Battery range: 135 – 750 V
- Charge/discharge current: 25 A
- Charging/discharging power: 8 kW
- Max. efficiency: 98.2%
- European efficiency: 97.4%
- Protection class: IP65
- Communication: CAN, RS485
- Dimensions (L × W × H): 534 × 210 × 418 mm
- Weight: 26 kg
- Warranty: 5-year standard warranty + 5-year parts warranty (10 years in total)
Solinteg Power Co., Ltd. is an internationally active manufacturer specialising in the development and production of photovoltaic Inverters and energy storage systems. The company places great emphasis on modern technology, high-quality workmanship and the long-term reliability of its products. Solinteg solutions are used worldwide in residential, commercial and industrial projects and meet strict international safety and performance standards.
