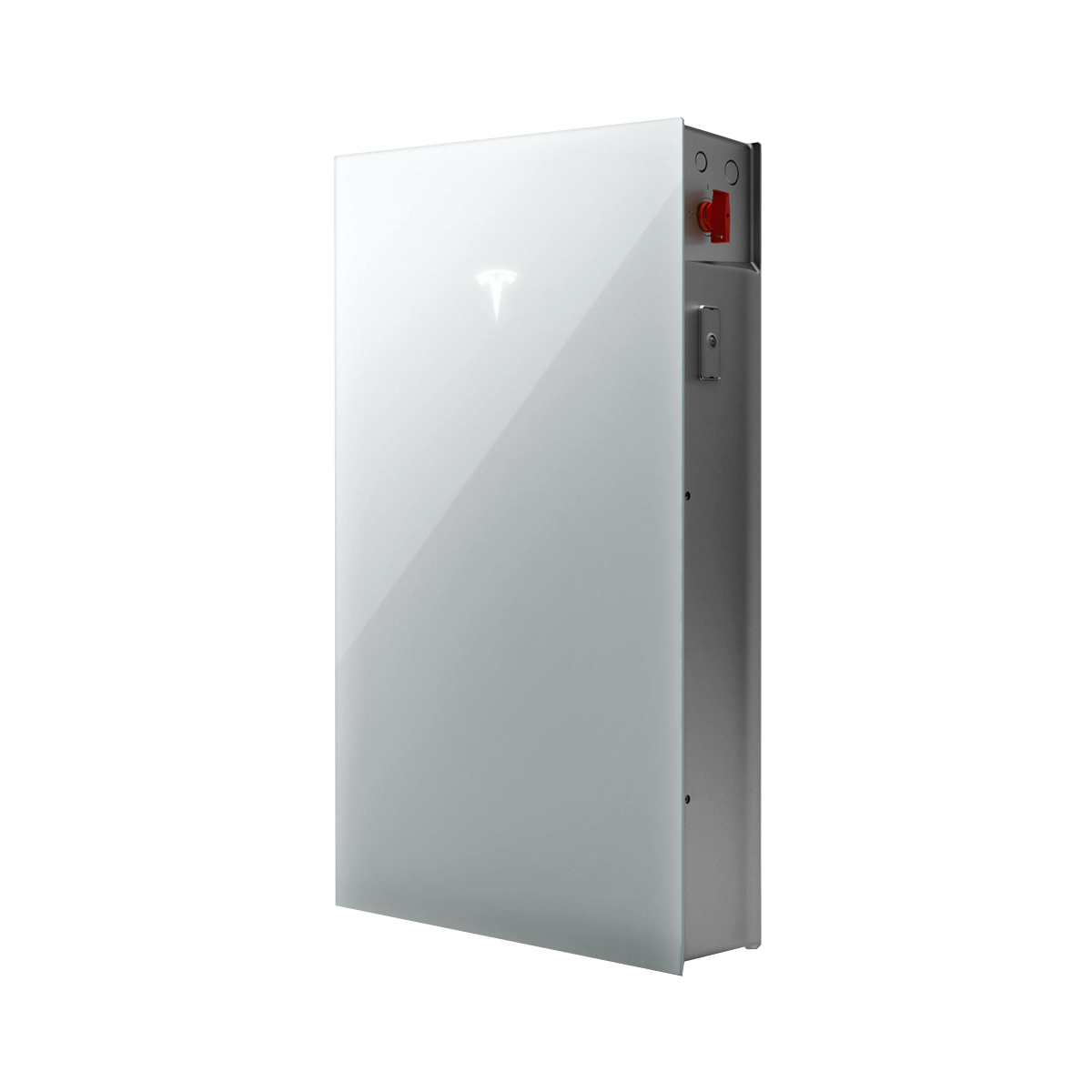

Tesla Powerwall 3 single-phase
| Manufacturer Art. No.: | 1707000-31-J |
|---|---|
| Art. Nr.: | 12444 |
| Net capacity: | 13.5 kWh |
| Battery type: | High volt lithium-iron-phosphate |
| Warranty: | 10 Jahre |
| Solar battery type: | 1-phase, High voltage battery, Solar battery retrofit |
| MPP-Tracker: | 1 |
| Inverter: | 4,6 kW |
Prices are only visible to business customers upon successful registration.
Available from stock
Product number:
12444
-
-
{ "id": "8933f0918fce584eb6075a44628ea5c2", "item_brand": "", "item_name": "Tesla Powerwall Dolly", "item_id": "12709", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "8933f0918fce584eb6075a44628ea5c2" } }
-
Description
The Powerwall 3 from Tesla, featuring an integrated hybrid Inverter and 13.5 kWh of usable capacity
Not yet a certified Powerwall installer? Get certified here.
The Powerwall 3, Tesla’s new all-in-one system, features a sleek design and high energy density. With its integrated hybrid Inverter, the energy storage system is ideal for new installations, but also for retrofitting existing PV systems. You can install it easily via plug-and-play, meaning you can have the energy storage system up and running in just a few hours. You can also connect up to four Powerwalls together.
Furthermore, the Backup Gateway 2 enables every Tesla Powerwall to provide emergency power and automatically switches to backup mode in the event of a power cut. Thanks to the new hybrid Inverter, appliances can continue to be supplied with Solar power and the energy storage system can be charged even if the mains grid fails.
You can easily monitor the power generation of the photovoltaic system and the home’s current consumption in real time using the Tesla Mobile App.
Product benefits of the Tesla Powerwall 3
- Integrated hybrid Inverter
- Elegant & compact design
- Floor or wall mounting, indoors or outdoors
- Ambient temperature: -20°C to 50°C
- Scalability up to 4 Powerwalls
- Backup on one phase or single-phase across all three phases with phase coupling
- Automatic all-pole grid disconnection
Product features Tesla Powerwall 3
- 13.5 kWh usable storage capacity
- 3 MPPT
- up to 13 kWp DC
- 4.6 kVA continuous power
- Dimensions: 1099 x 609 x 193 mm (HxWxD)
- Weight: 130 kg
- IP67 (battery & power electronics)
- IP55 (cable connection compartment)
- Noise level: < 50 dBA at 30°C
- 10-year product warranty
Contents
- Tesla Powerwall 3 including wall bracket, reusable packaging and other accessories
-
