Alumero easyGREEN Support, Large

Manufacturer Art. No.:	200150
Art. Nr.:	16148
Pieces per package unit:	8 per carton 160 per pallet
Product type:	Elevation system
Type of roof:	Flat roof, Green roof

Prices are only visible to business customers upon successful registration.

Unfortunately you are not authorised to place orders

To purchase the item you need a certification from the manufacturer.

The article is currently not available in your country.

Please contact your personal contact person to find out the price of the product. You can find your contact person's contact information in your customer account.

There was an error when determining the product availabilty

Product number: 16148

Prices are only visible to business customers upon successful registration.

Unfortunately you are not authorised to place orders

To purchase the item you need a certification from the manufacturer.

The article is currently not available in your country.

Please contact your personal contact person to find out the price of the product. You can find your contact person's contact information in your customer account.

There was an error when determining the product availabilty

Product number: 16148

Tech tip

The difference compared with the easySPEED support lies in the base: the green roof base positions the support on the green roof in such a way that the vegetation layer underneath is preserved. Two factors are crucial here in determining the support’s service life. Firstly, the choice between large and small: This determines how much air remains between the lower edge of the module and the substrate – if there is too little, the vegetation will grow into the modules, leading to shading and increased maintenance. The correct size is determined by the design and the planned installation height of the green roof, not by gut feeling. Secondly, the pH value: aluminium must only come into contact with media whose pH lies between 4.5 and 8.5 – for substrates and drainage layers, it is worth consulting the data sheet for the green roof system.

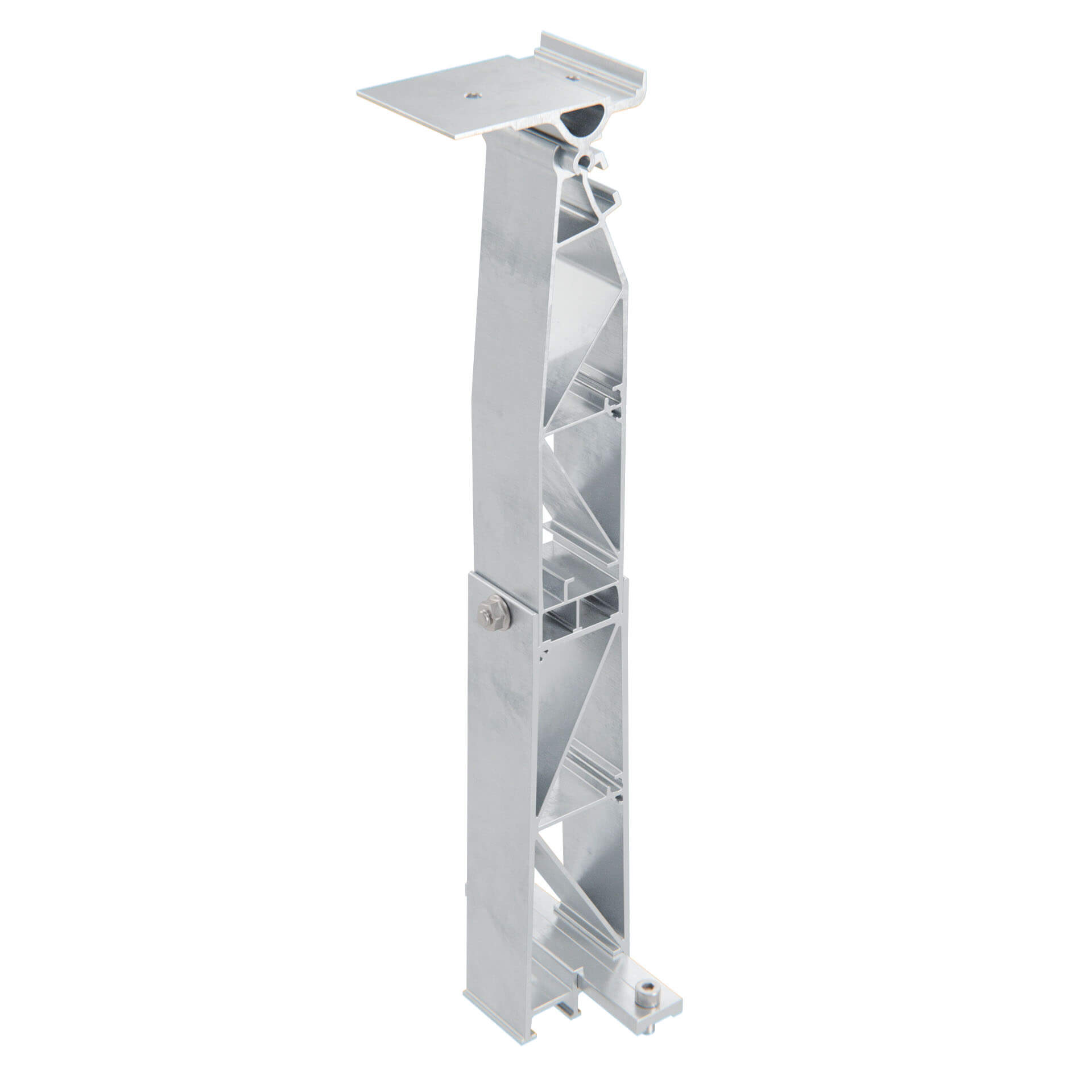

Alumero easyGREEN Large Support

The Large Support is fixed to the base plate and, via a movable adapter, sets the module pitch at around 10°. The clamping profile and the screws for fixing it to the base plate are included. The green roof base rests the support on the green roof without displacing the vegetation layer. The materials used are aluminium EN AW 6005A T6 and 6063 T66, combined with A2-70 stainless steel.

Your benefits

Adjustable adapter and green roof base – module tilt approx. 10°
Clamping profile and screws for fixing are included
Green roof base for installation on a green flat roof
Fits onto the base plates of the easyGREEN system
Aluminium EN AW 6005A T6 and 6063 T66, stainless steel A2-70 fasteners
0.96 kg per piece

Order now

Are you installing an easyGREEN flat roof system? Order the easyGREEN Large Support directly here in the Memodo Shop. The quantity required is based on the layout plan.

Technical data

System: Alumero easyGREEN
Module pitch: approx. 10°
Adapter: adjustable and green roof base
Contents: Support, clamping profile, screws for fixing to the base plate
Material: aluminium EN AW 6005A T6, 6063 T66, stainless steel A2-70
Surface finish: mill finish
Weight: 0.96 kg
Manufacturer’s packaging: 8 pieces per box, 160 pieces per Euro pallet
Origin: EU / Poland
Product tariff number: 76169990
Manufacturer’s item number: 200150
