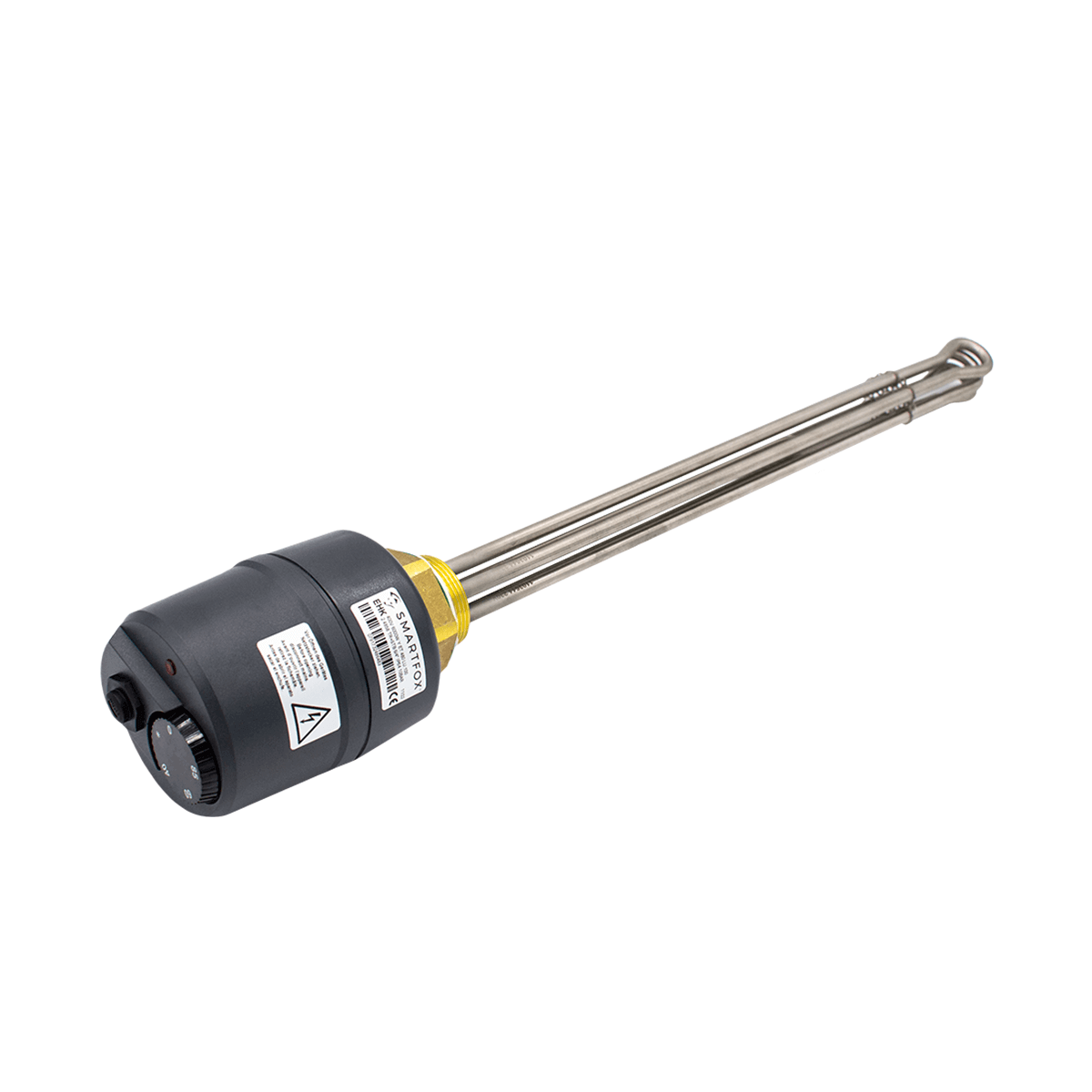

SMARTFOX screw-in heater 9kW 400V
| Manufacturer Art. No.: | 0791732486537 |
|---|---|
| Art. Nr.: | 14503 |
| Pieces per package unit: |
|
| Heating system: | Heater |
| Heating capacity: | 9 kW |
| Dimensions: | 510 x 80 x 80 in mm (HxWxD) |
| Power requirements: | 3 kW |
SmartFox 3 kW heating rod – Efficient hot water production using surplus solar power
Use the SmartFox 3 kW heating rod to maximise your Self-consumption whilst reducing heating costs. Easy to install, efficient to run – the ideal solution for sustainable living. Order now from Memodo and benefit from maximum energy efficiency!
The SmartFox 3 kW heating rod is the perfect solution for efficiently using surplus Solar power for hot water production or to support your heating system. In combination with a SmartFox energy manager and a suitable power controller, it enables stepless power control that makes optimum use of the available surplus PV energy. Thanks to the integrated thermostat and safety temperature limiter, it offers maximum operational safety. Its 6/4" standard thread allows for easy installation in standard storage tanks. The heating tubes, made of highly corrosion-resistant chromium-nickel steel with integrated insulation separation, ensure a long service life.
Product benefits:
- Stepless power control in combination with SmartFox energy managers
- Integrated thermostat (0°C to 85°C) for precise temperature control
- Safety temperature limiter (STB) at 98°C protects against overheating
- Heating tubes made of highly corrosion-resistant chromium-nickel steel 2.4858 (AISI B424)
- Integrated insulation barrier to prevent corrosion
- Easy installation thanks to 6/4" standard thread (G 1½")
- Suitable for enamelled drinking water and buffer tanks
- Protection class IP64
Product features:
- Heating output 9 kW
- 3-phase connection
- Required connection flange: 1 1/2"
- Length: L = 490 mm
- Width: W = 125 mm
- Height: H = 125 mm
- Weight: 1.68 kg
- Immersion depth ET: 660 mm
Examples of use:
- Hot water supply in detached and multi-family homes
- Integration into existing drinking water and buffer tanks
- Optimisation of self-consumption in PV systems with SmartFox energy managers
- Use in combination with smart home systems
-
