Sungrow Hybrid SH25T – V11
| Type of manufacturer: | SH25T |
|---|---|
| Manufacturer Art. No.: | ASH00147 |
| Art. Nr.: | 11197 |
| Pieces per package unit: |
|
| Phases: | 3 |
| Inverter type: | Asymmetric inverters, Hybrid inverter |
| MPP-Tracker: | 3 |
| AC power: | 25 kW |
| Warranty: | 10 years |
| Communication: | RS485, WiFi, Ethernet, CAN |
| MPP voltage range: | 150 - 950 Volt |
| WEEE-Number: |
|
Prices are only visible to business customers upon successful registration.
Available from stock
Product number:
11197
-
-

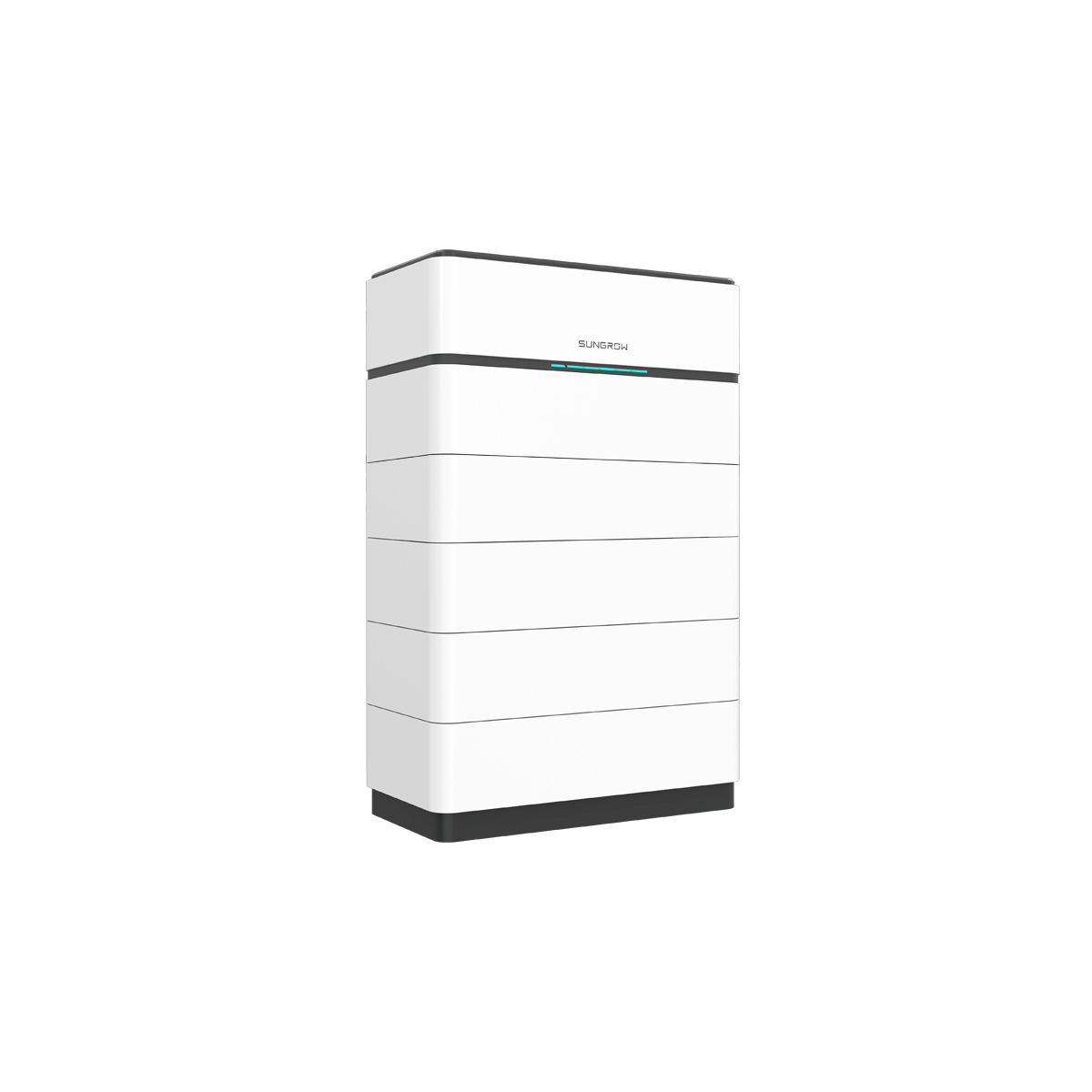

{ "id": "d6e2a86bd5355eb89bbd3ed3817aa64d", "item_brand": "", "item_name": "Sungrow SBH250 battery", "item_id": "11852", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "d6e2a86bd5355eb89bbd3ed3817aa64d" } } -

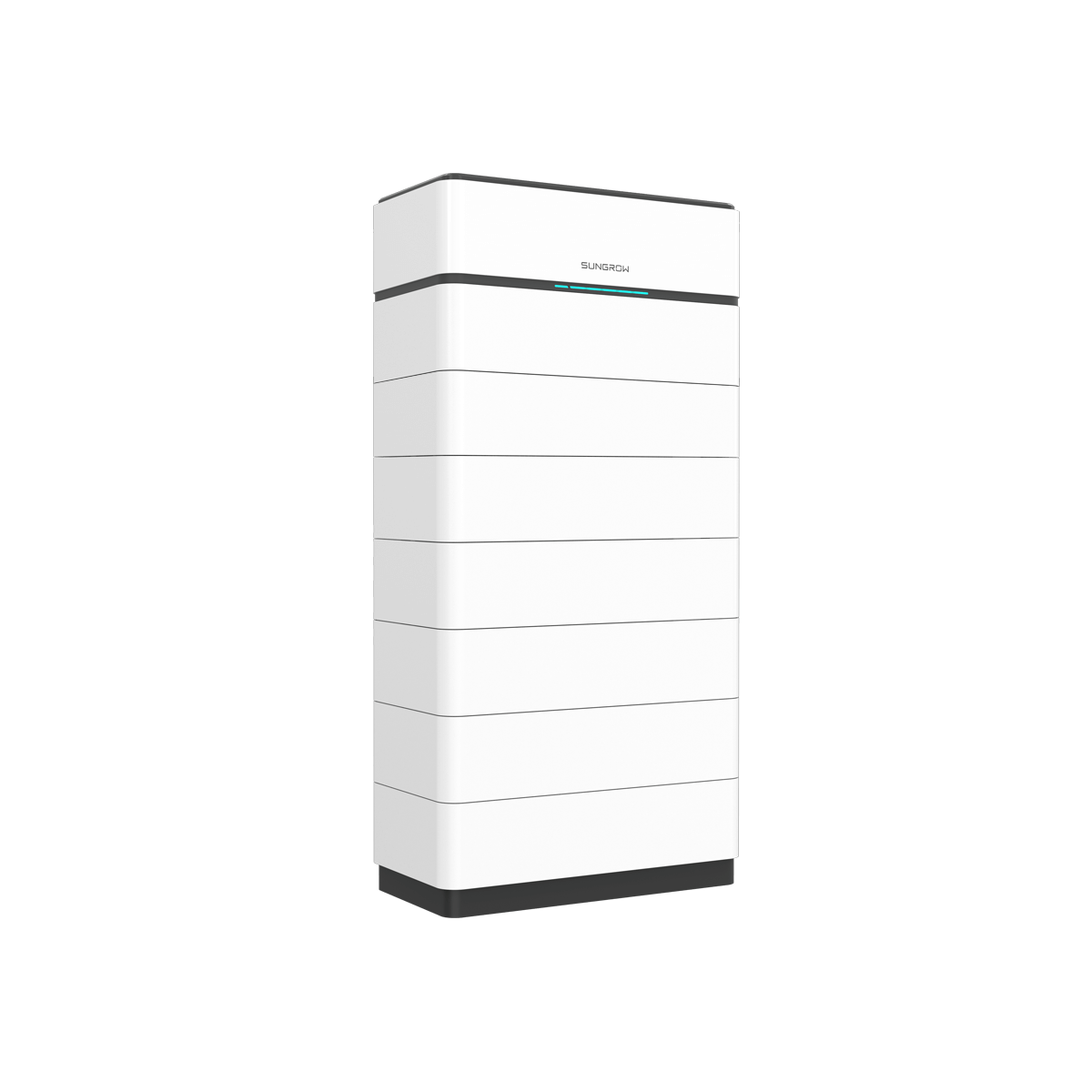

{ "id": "6ad3c3d0c9e75d8bac32d3e5b93a8b2d", "item_brand": "", "item_name": "Sungrow SBH300 battery", "item_id": "11853", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "6ad3c3d0c9e75d8bac32d3e5b93a8b2d" } } -
{ "id": "93a44f36a3ed5204936a01499fefc07e", "item_brand": "", "item_name": "Sungrow SBH350 battery", "item_id": "11854", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "93a44f36a3ed5204936a01499fefc07e" } } -

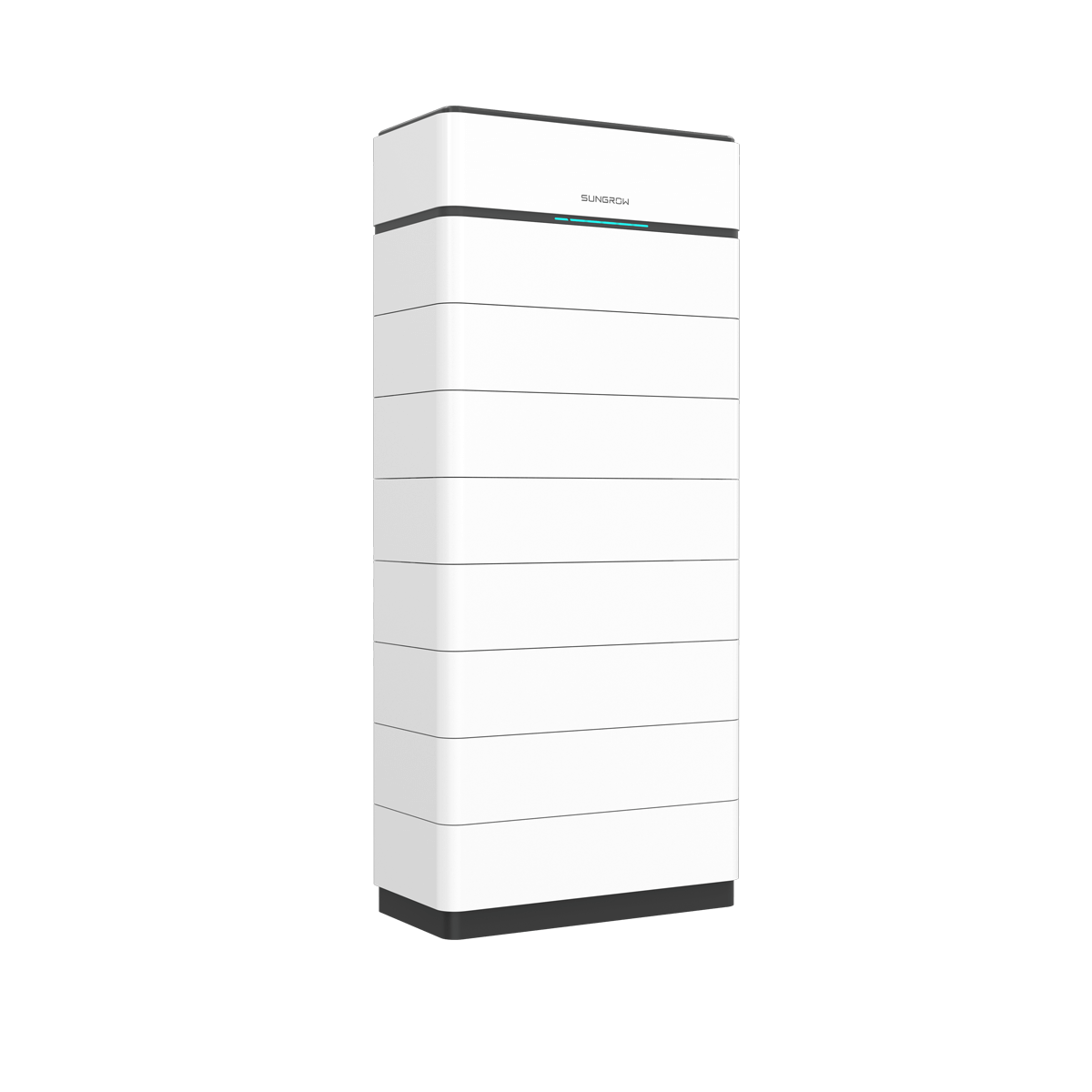

{ "id": "143a0ecafef354ddaf14fd2b280cc7ec", "item_brand": "", "item_name": "Sungrow SBH400 battery", "item_id": "11855", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "143a0ecafef354ddaf14fd2b280cc7ec" } }
-
Description

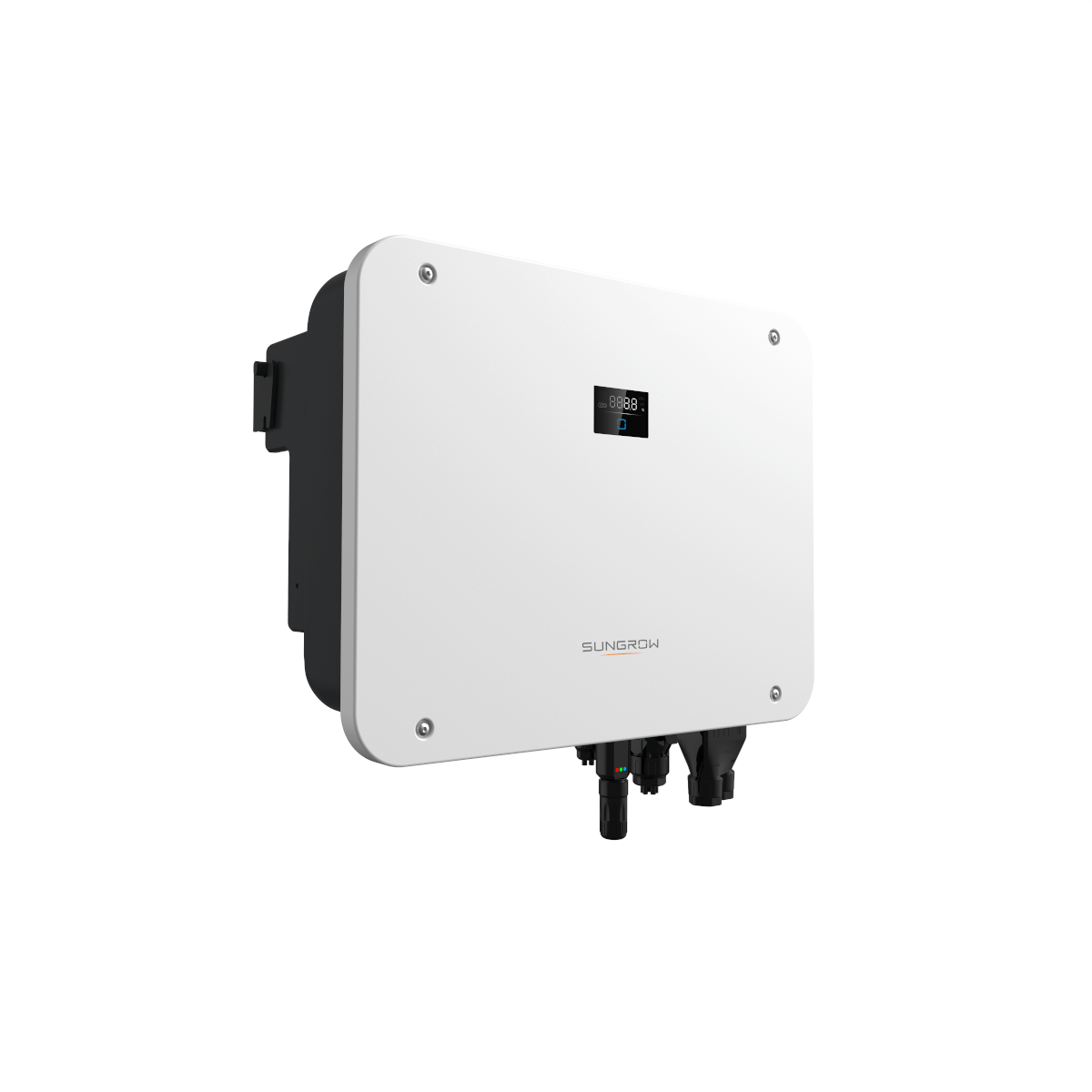

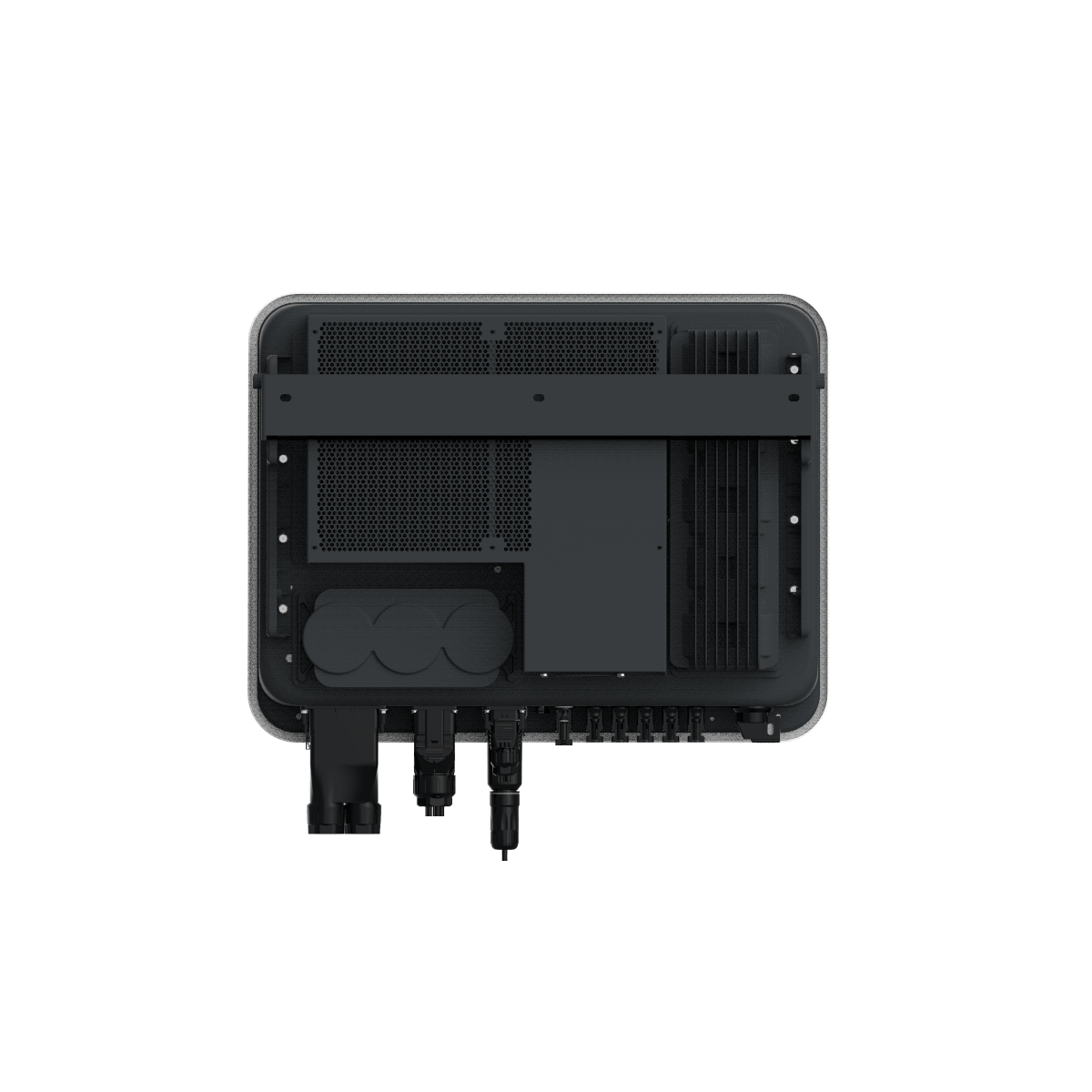

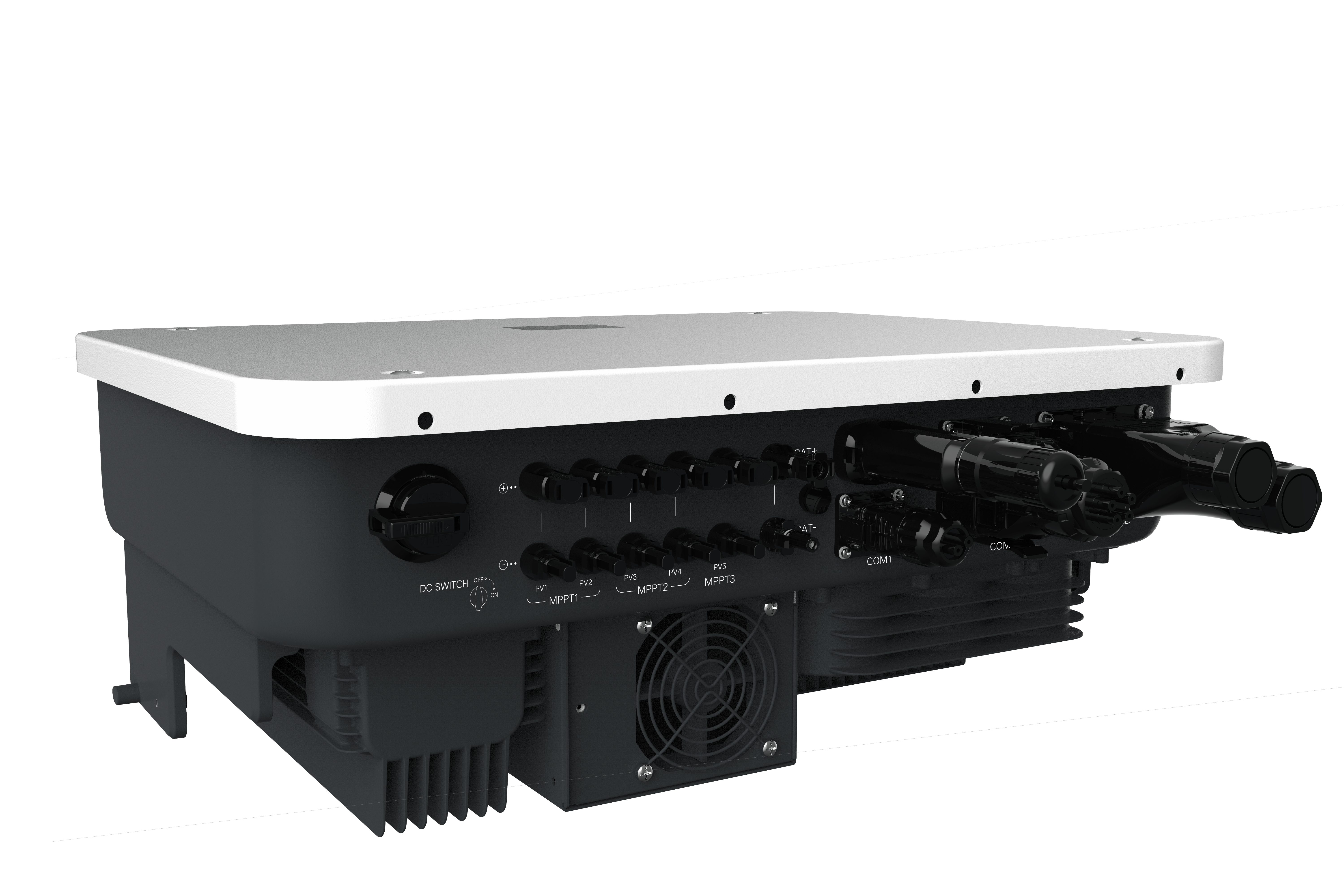

Sungrow Hybrid High Voltage Inverter with Emergency Output SH25T
These new three-phase hybrid inverters have a three-phase backup power output with three-phase current with 100% skew load capability. Together with the high voltage battery connection and 3 independent MPP trackers, the Sungrow inverter leaves nothing to be desired. Currently, this device is configured via iSolarCloudAssistant and sends its data via the already integrated Wi-Fi or Ethernet interfaces to the free iSolarCloud portal or iSolarCloud app. RS485 (Modbus RTU) and Ethernet (Modbus TCP) are available for connecting third-party data loggers. External connections, spacious connection area and an integrated spirit level allow for quick installation.
The inverter cannot be combined with Sungrow optimizers. The possibility to connect the Sungrow Wallbox is planned for 2024. Compatibility with BYD battery storage systems is also planned.
Please check local restrictions in Austria!
Product advantages
- Input voltage range from 150-950 V
- High efficiency of up to 98.2%
- Natural convection
- AC + DC overvoltage protection 2 integrated
- External connections, no need to open the inverter
- Integrated spirit level
- Potential-free contact (SG-ready contact) available (for: controlling e.g. heat pump)
- Noise emission 50dB (A)
Applications:
- Operation without battery as solely inverter
- DC operation with PV and battery
- AC operation without PV and with battery
Product features Sungrow Hybrid HV SH20T:
- Mains connection: 3 phase
- AC power: 25.0 kVA – emergency power via separate output
- Polarity protection
- MPP tracker: 3
- MPPT 1: 2 MC4 inputs; MPPT 2: 2 MC4 inputs, MPPT 3: 1 MC4 input
- Maximum input current: 80 A ( 32A / 32A / 16A )
- Maximum short-circuit current Isc: 100A ( 40A / 40A / 20A)
- Battery connection
- Interfaces: Ethernet
- Cable cross section AC connection 6 - 10 mm² possible
- Cable cross section DC connection 4 - 6 mm² possible
- Dimensions: 620 x 480 x 245 mm (H x W x D)
- Weight: 40 kg
- Protection class: IP 65
Scope of delivery
- Inverter
- 3-phase Smart Meter Chint DTSU666-20 with 1x CT 100A/0.333V current transformer set included
- WiNet-S2 module Wi-Fi adapter
- Wall mount
- Expansion dowel set
- M4 screws and washers
- AC/Backup connector set
- Cable end clamp
- PV connector
- Crimp contact
- SUNCLIX connector set
- LAN connector
- COM connector
- RS485 cable
- OT connector
- Documents
Battery compability list
- Sungrow SBR096 – SBR256 battery
Energy Storage System Comparison
If you are looking for emergency power, this is it! Compact dimensions and light weight with maximum performance – installed as quickly as no other.
Downloads
-
Matching accessories
-

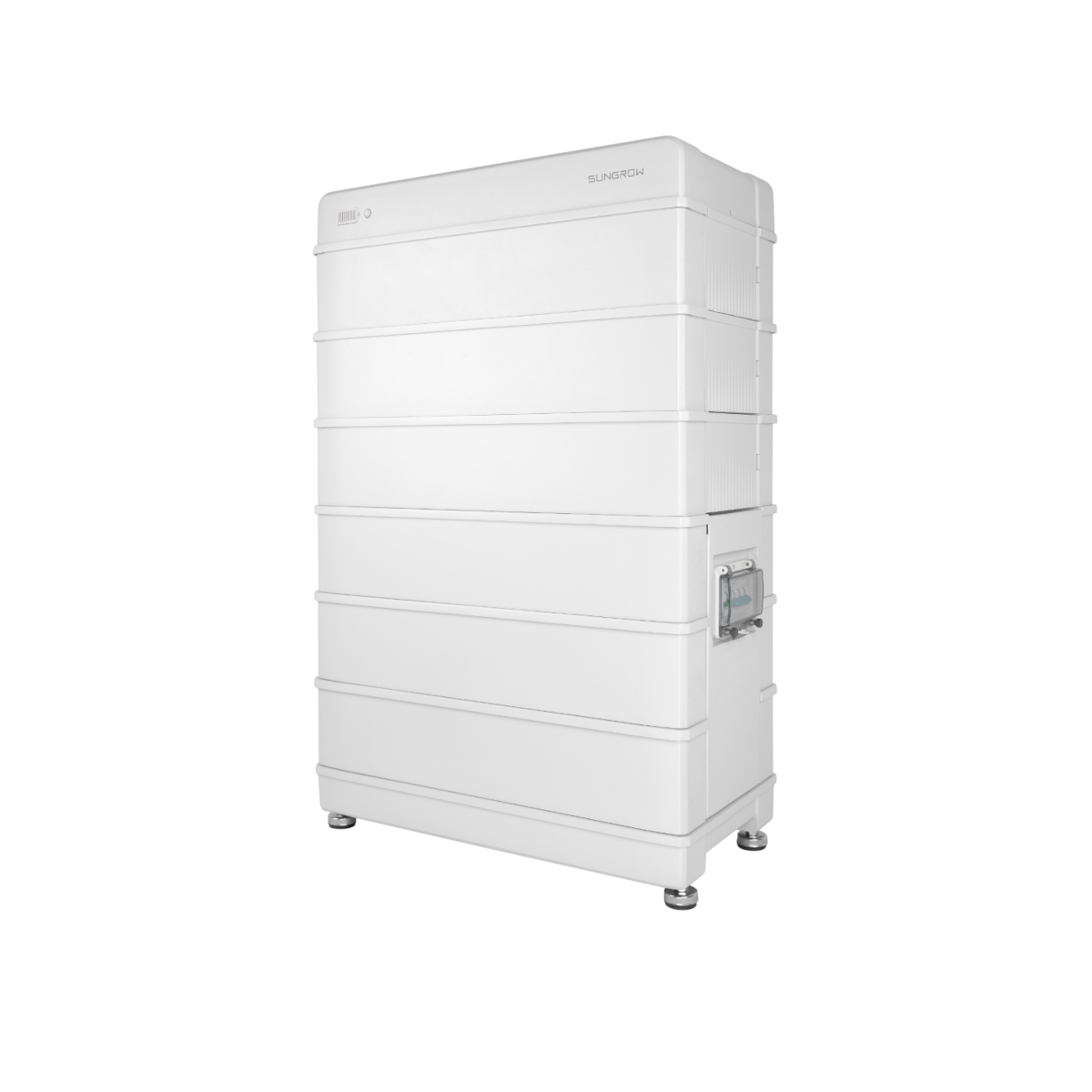

Sungrow SBR192- Type of manufacturer: SBR192
- Art. Nr.: 6770
Available from stock{ "id": "319d8b0190cb50d2ad0c4759c54deb23", "item_brand": "", "item_name": "Sungrow SBR192", "item_id": "6770", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "319d8b0190cb50d2ad0c4759c54deb23" } } -
Sungrow SBR224- Type of manufacturer: SBR224
- Art. Nr.: 6772
Available from stock{ "id": "d1fb16b8418b58968efa15f9245e28b6", "item_brand": "", "item_name": "Sungrow SBR224", "item_id": "6772", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "d1fb16b8418b58968efa15f9245e28b6" } } -

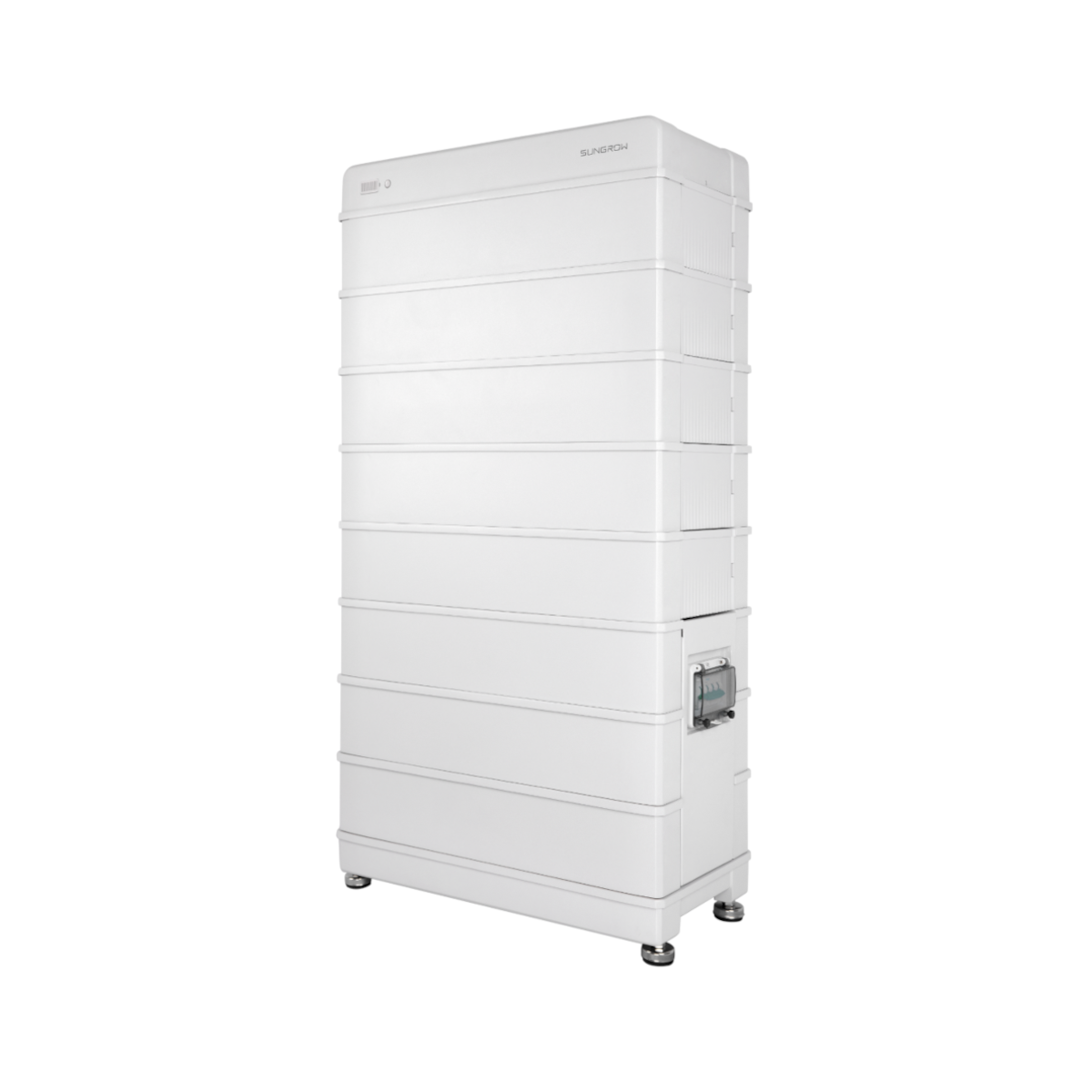

Sungrow SBR256- Type of manufacturer: SBR256
