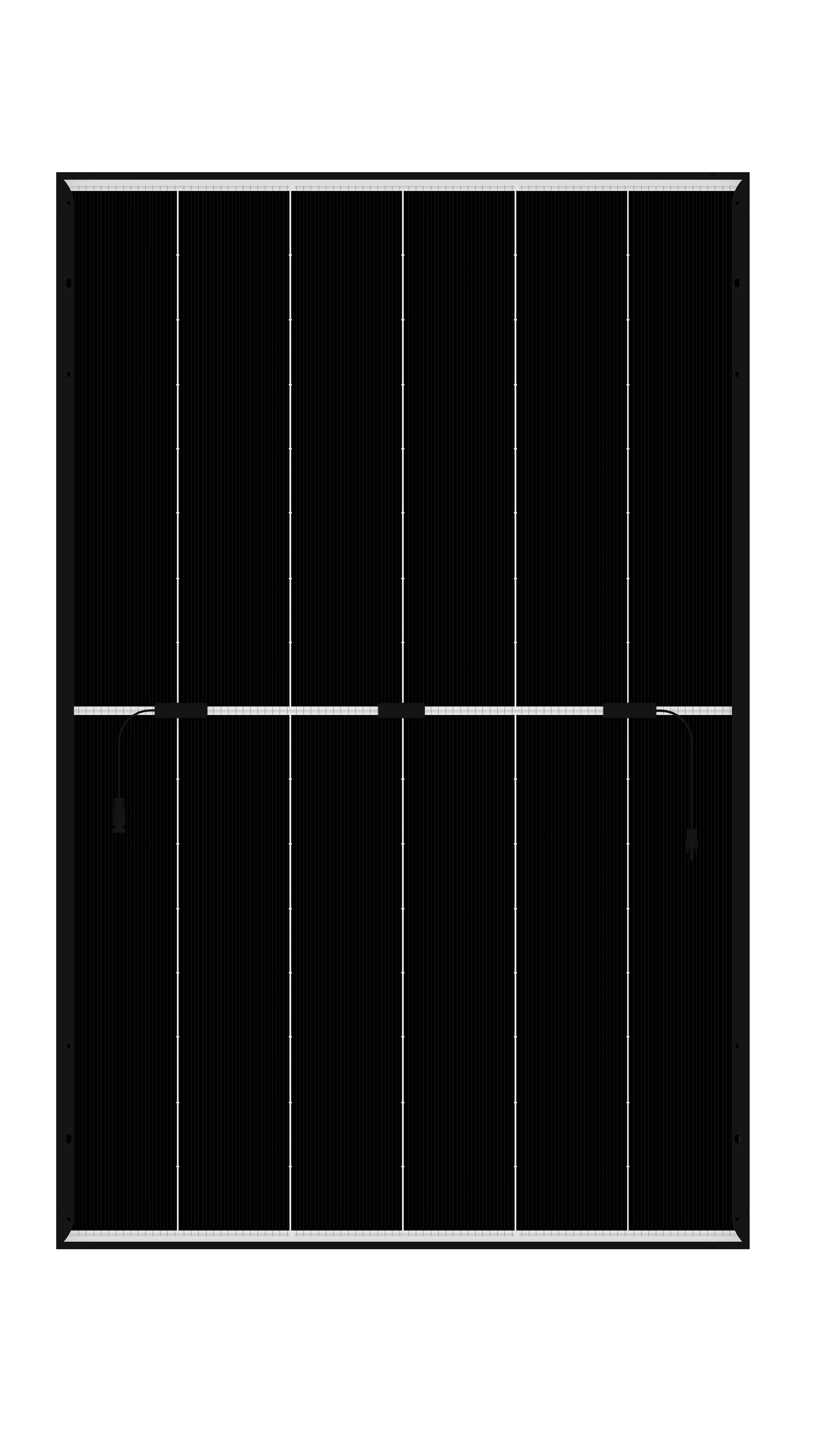

AIKO Solar N-Type ABC Double-Glass – Neostar 2P+48 490W

AIKO Solar is a Chinese manufacturer that has been a leader in solar cell production for many years. AIKO Solar invests a great deal of energy in its own research and has thus developed an innovative cell technology. Using All-Back-Contact (ABC) technology, the company is bringing its own solar panels to market. The Neostar 2P+48 impresses with a top efficiency of 24.5% at 490 Wp – the successor to the tried-and-tested Neostar 3P+ AIKO-A490-MCE54Dw. It also boasts a very attractive all-black design, with no contacts on the front of the cells.

With 96 half-cells in a compact 48-cell format (1762 × 1134 mm), the Neostar 2P+48 is the right choice for discerning households and smaller roofs, where maximum output per square metre is key.

Product benefits

• Partial shading optimisation
• lower cell temperature under shading
• ABC technology – no contacts on the front of the cell
• completely black surface
• 96 monocrystalline N-type ABC cells (6×16)
• 0/+3 % positive power tolerance
• Monophasic double-glazed 2.0 + 2.0 mm coated, semi-tempered glass
• highly efficient & aesthetically pleasing
• 15-year product warranty (extendable to 25 years)
• 30-year linear power warranty
• Optional Munich Re insurance available

Product specifications: AIKO Solar AIKO-A490-GRH48Dw

• Power: 490 watts
• 1500 V IEC certified
• Black anodised aluminium frame
• 2.0 + 2.0 mm coated, semi-tempered glass
• Dimensions: 1762 × 1134 × 30 mm (H x W x D)
• Weight: 24.1 kg (± 3 %)
• Cable length: ± 1200 mm
• Connector type: Original MC4-EVO2A (Stäubli)
• Junction box: IP68, 3 bypass diodes
• Protection class: Class II
• Power temperature coefficient: -0.26 %/°C
• Voltage (Vmp): 30.42 V
• Current (Imp): 16.11 A
• Short-circuit current (Isc): 16.79 A
• Open-circuit voltage (Voc): 35.72 V
• Maximum string fuse current: 30 A
• Operating temperature: -40 °C to +70 °C
• Static load: 5,400 Pa front side / 2,400 Pa rear side
• Hail test: 25 mm at 23 m/s
• Fire class: IEC Class A
• Packaging: 37 units per pallet / 962 units per 40’ HC

Module manufacturer: AIKO Solar

Founded in 2009, AIKO Solar has accumulated many years’ experience in the development and production of solar cells. The innovative All-Back-Contact (ABC) technology was developed in the company’s own laboratories. AIKO Solar now also incorporates this technology into its own modules, thereby achieving top efficiency levels.
